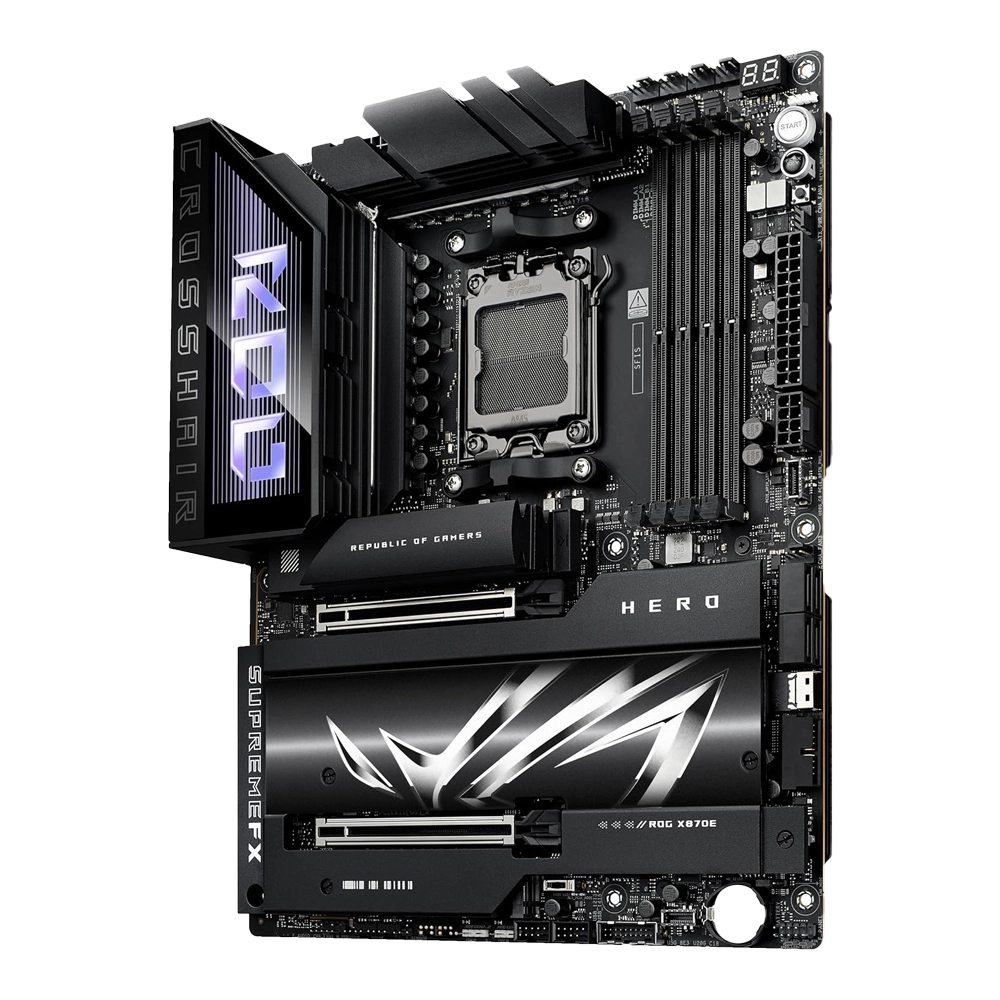

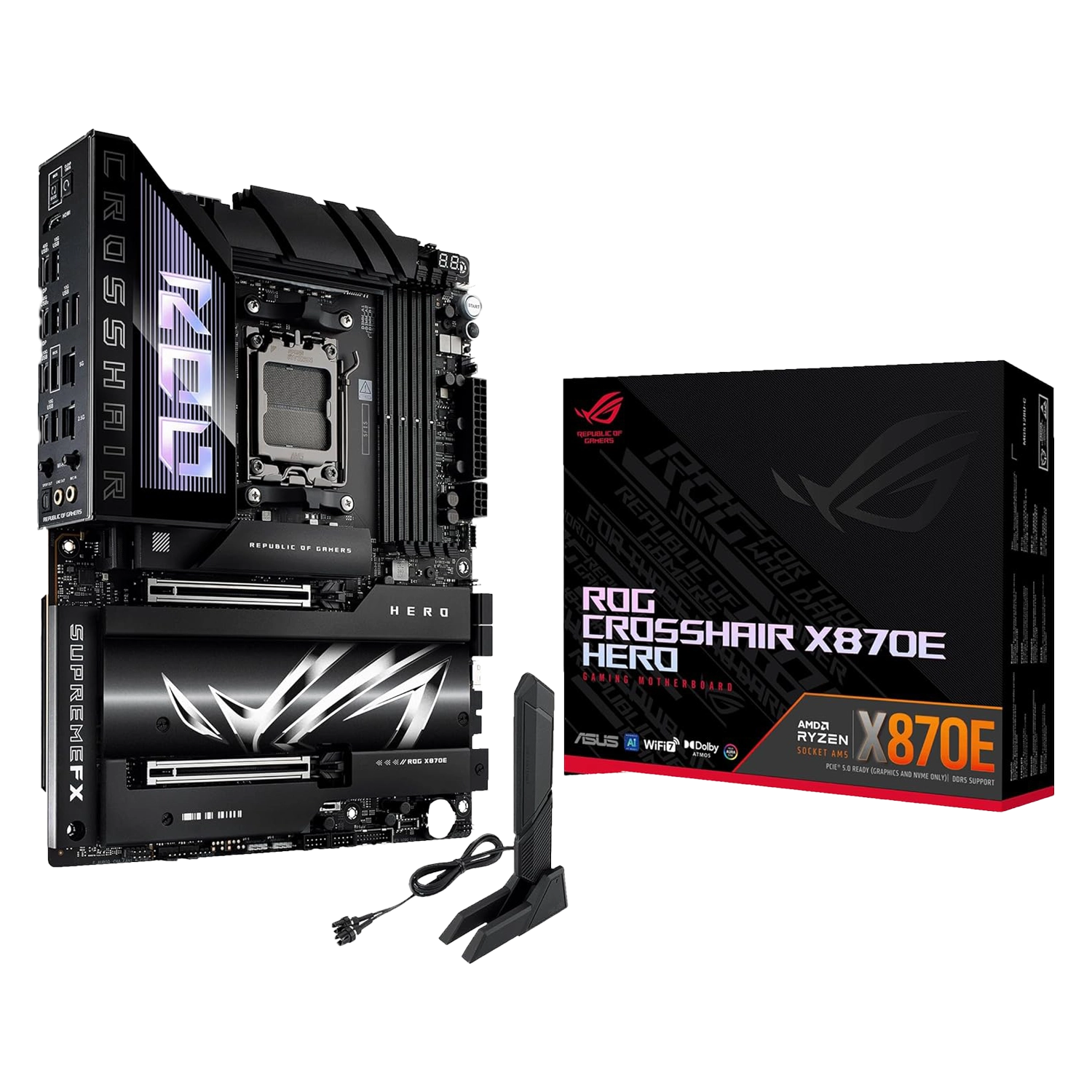

مادربرد ایسوس مدل - ASUS AMD ROG CROSSHAIR X870E HERO

ROG CROSSHAIR X870E HERO

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

AMD-X870E

4xDIMM slots, max.192GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory
Dual channel memory architecture

NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)

1xHDMI™ port*
2xUSB4® (40Gbps) ports support USB Type-C® display outputs
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
VGA resolution support depends on processors' or graphic cards' resolution.

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
2xPCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes)
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
2xPCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors
2xPCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)

Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1slot (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0x4 mode)
SlimSAS slot supports PCIe 4.0x4 mode.
4xSATA6Gb/s-ports

1xIntel® 2.5Gb Ethernet
1xRealtek 5Gb Ethernet
ASUS LANGuard

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4

10 عدد

2xUSB4® (40Gbps) ports (2xUSB Type-C®)
8xUSB 10Gbps ports (6xType-A + 2xUSB Type-C®)

10 عدد

1xUSB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)
1xUSB 20Gbps connector (supports USB Type-C®)
2xUSB 5Gbps headers support 4 additional USB 5Gbps ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel

- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors

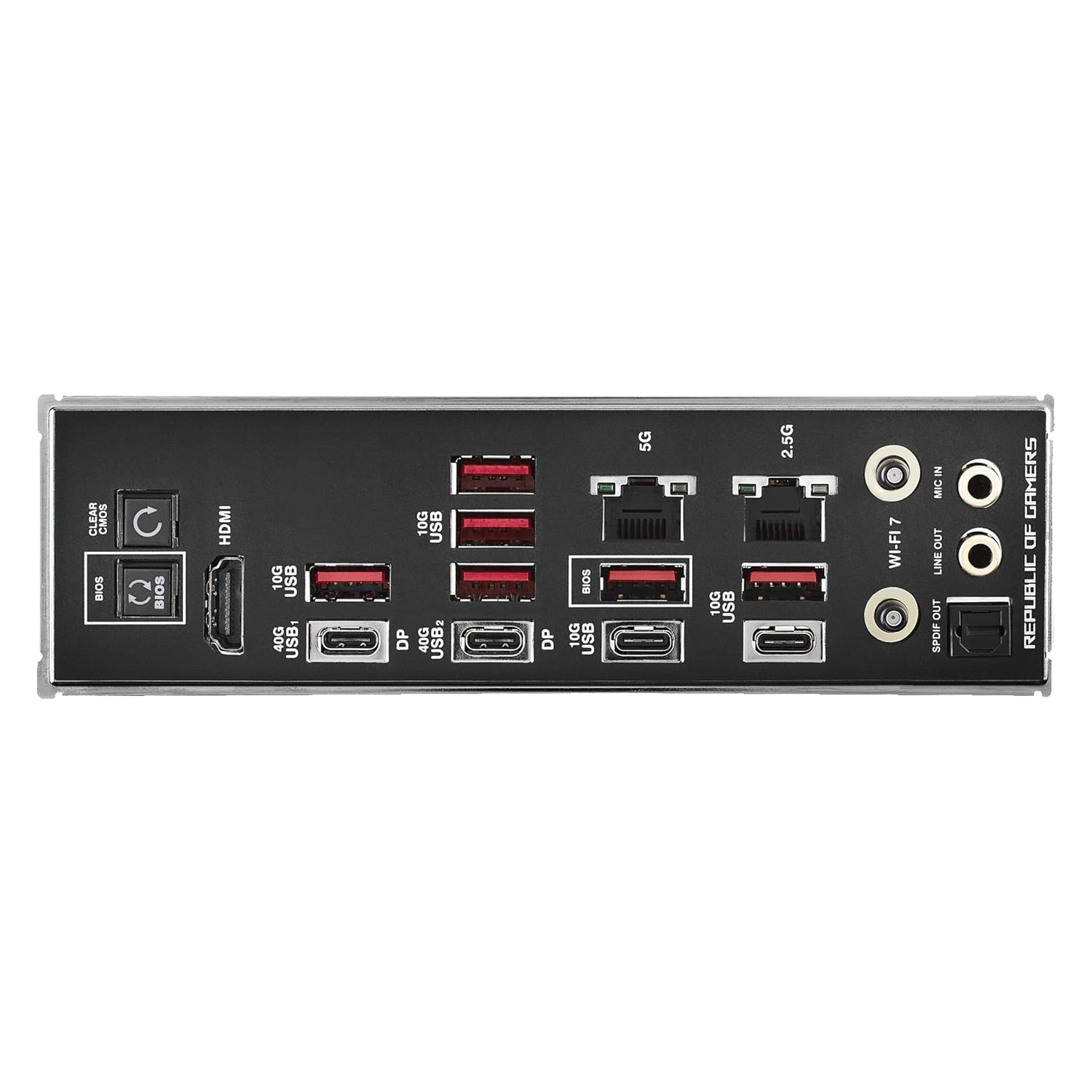

2xUSB4® (40Gbps) ports (2xUSB Type-C®)
8xUSB 10Gbps ports (6xType-A + 2xUSB Type-C®)
1xHDMI™ port
1xWi-Fi module
1xIntel® 2.5Gb Ethernet port
1xRealtek 5Gb Ethernet port
2xGold-plated audio jacks
1xOptical S/PDIF out port
1xBIOS FlashBack™ button
1xClear CMOS button

Fan and Cooling Related
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
1x4-pin AIO Pump header
4x4-pin Chassis Fan headers
1xW_PUMP+ header
Power Related
1x24-pin Main Power connector
2x8-pin +12V CPU Power connector
1x8-pin PCIe Power connector
Storage Related
5xM.2 slots (Key M)
1xSlimSAS connector
4xSATA 6Gb/s ports

2xUSB 20Gbps connectors (support USB Type-C® )
2xUSB 5Gbps headers support 4 additional USB 5Gbps ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

3xAddressable Gen2 headers
1xAlteration PCIe mode switch
1xFlexKey button
1xFront Panel Audio header (F_AUDIO)
1xReTry button
1xStart button
1x10-1 pin System Panel header
1xThermal Sensor header
1xLN2 Mode jumper

(Extreme OC Kit)
- FlexKey button
- LN2 Mode
- ReTry button
- Start button
(Extreme Engine Digi+)
- 10K Black metallic capacitors
- MicroFine alloy choke
(ASUS Q-Design )
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
(ASUS Thermal Solution)
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Metal backplate
(ASUS EZ DIY)
- Backplate
- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
(Aura Sync)
- Addressable Gen2 header(s)
(Front Panel USB 20Gbps with Quick Charge 4+ Support)
- Support: up to 60W fast charging and USB Wattage Watcher
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS

ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
- Polymo Lighting II
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
-Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
BIOS
256Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

1xARGB RGB extension cable
4xSATA 6Gb/s cables

1xASUS WiFi Q-Antenna
1xQ-connector
2xM.2 Q-Latch package
3xM.2 Q-Slide package
5xM.2 rubber package
1xROG stickers
1xROG thank you card
1xROG Bottle Opener

Windows® 11

ATX Form Factor
12 inchx9.6 inch ( 30.5 cmx24.4 cm )

(Cables)
1 x ARGB RGB extension cable
4xSATA 6Gb/s cables
(Miscellaneous)
1xASUS WiFi Q-Antenna
1xQ-connector
2xM.2 Q-Latch package
3xM.2 Q-Slide package
5xM.2 rubber package
1xROG stickers
1xROG thank you card
1xROG Bottle Opener
(Installation Media)
1xUSB drive with utilities and drivers
(Documentation)
1xQuick start guide
