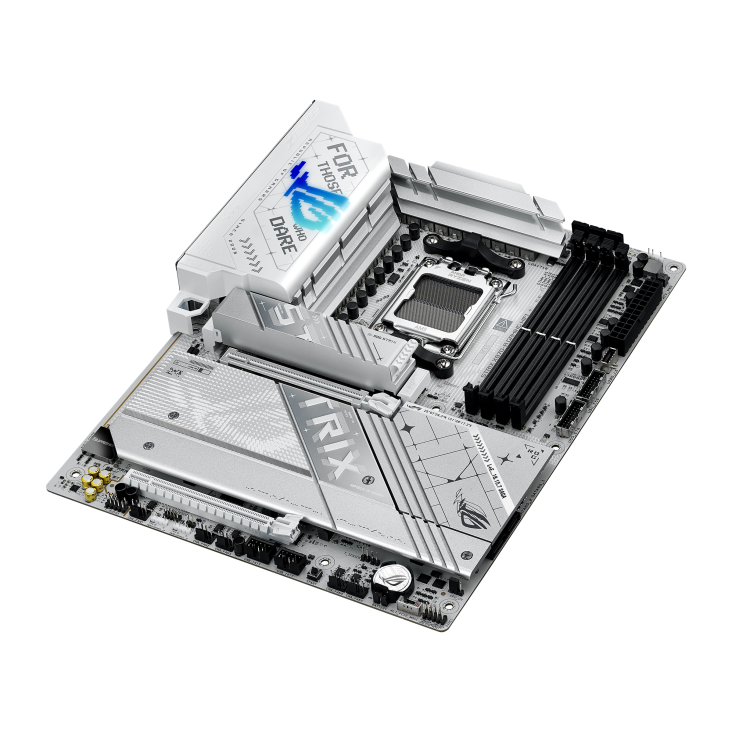

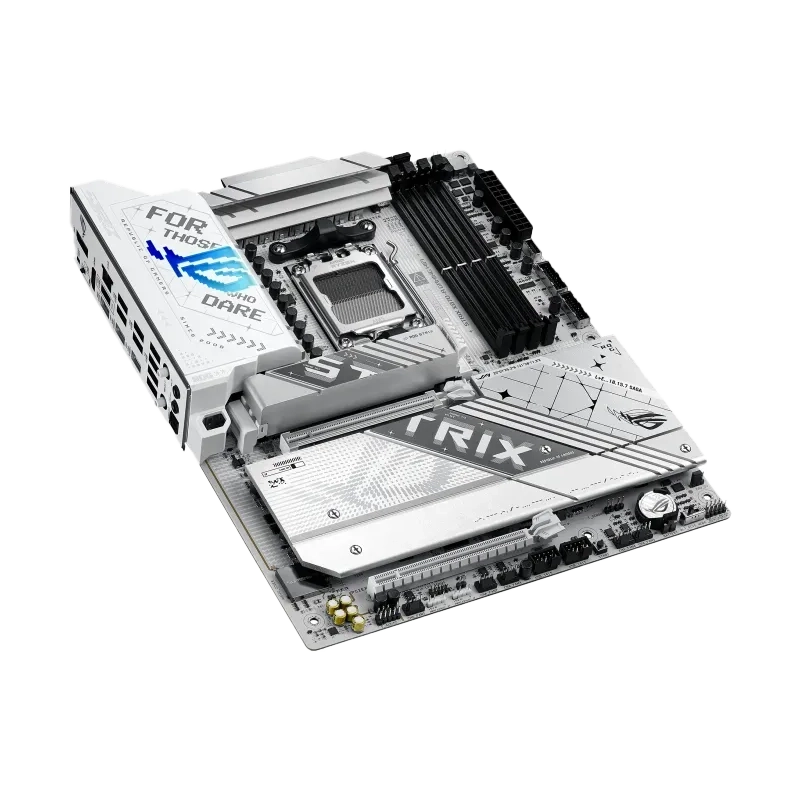

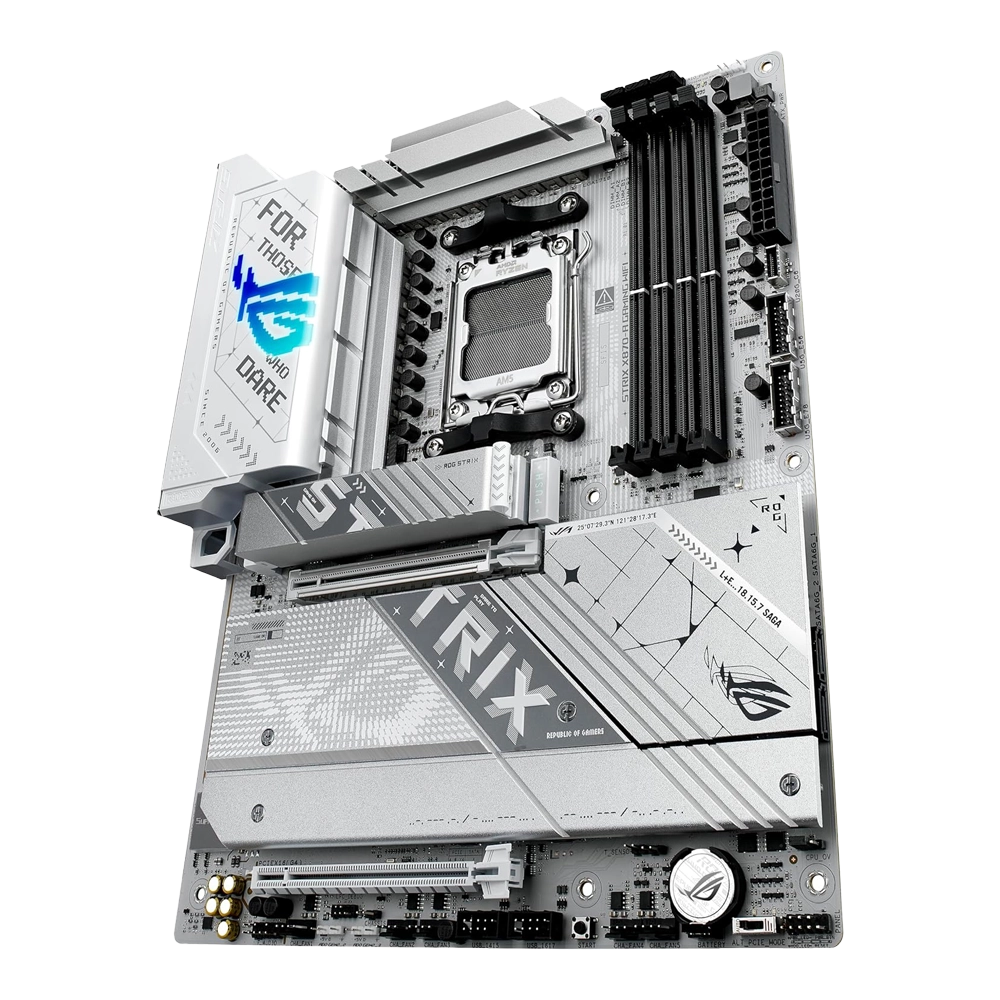

مادربرد ایسوس مدل - ASUS AMD ROG STRIX X870-A GAMING WIFI

ROG STRIX X870-A GAMING WIFI

AMD Socket AM5 for AMD Ryzen™ 9000 &
8000 & 7000 Series Desktop Processors

AMD-X870

4xDIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered
Memory"
Dual channel memory architecture

Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

1xHDMITM port-
2xUSB4® (40Gbps) ports support USB Type-C® display outputs

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1xPCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1xPCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
1xPCIe 4.0 x16 slot (supports x4 mode)

Supports 4xM.2 slots and 2xSATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
2xSATA 6Gb/s ports

1xIntel® 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4

12 عدد

2xUSB4® (40Gbps) ports(2xUSB Type-C® with DP Alt mode)
6xUSB 10Gbps ports (5xType-A + 1xUSB Type-C® with up to 30W PD Fast-charge)
4xUSB 5Gbps ports (4xType-A)

9 عدد

1xUSB 20Gbps connector (supports USB Type-C®)
2xUSB 5Gbps headers support 4 additional USB 5Gbps ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"

- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

2xUSB4® (40Gbps) ports (2xUSB Type-C® with DP Alt mode)
6xUSB 10Gbps ports (5xType-A + 1xUSB Type-C® with up to 30W PD Fast-charge)
4xUSB 5Gbps ports (4xType-A)
1xDisplayPort
1xHDMI™ port
1xWi-Fi module
1xIntel® 2.5Gb Ethernet
2xAudio jacks 
1xOptical S/PDIF out port
1xBIOS FlashBack™ button 
1xClear CMOS button 

Fan and Cooling related(موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
1x4-pin AIO Pump header
5x4-pin Chassis Fan headers
Power Related (موارد مرتبط با برق)
1x24-pin Main Power connector
2x8-pin +12V CPU Power connectors
Storage Related (موارد مربوط به حافظه و هارد)
4xM.2 slots (Key M)
2xSATA 6Gb/s ports

(Extreme Engine Digi+)
- 5K Black metallic capacitors
(ASUS Q-Design )
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
(ASUS Thermal Solution)
- M.2 heatsink backplate
- M.2 heatsink
(ASUS EZ DIY)
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
(Aura Sync)
- Addressable Gen 2 headers

Windows 11

ATX Form Factor
12 inchx9.6 inch ( 30.5 cmx24.4 cm )
