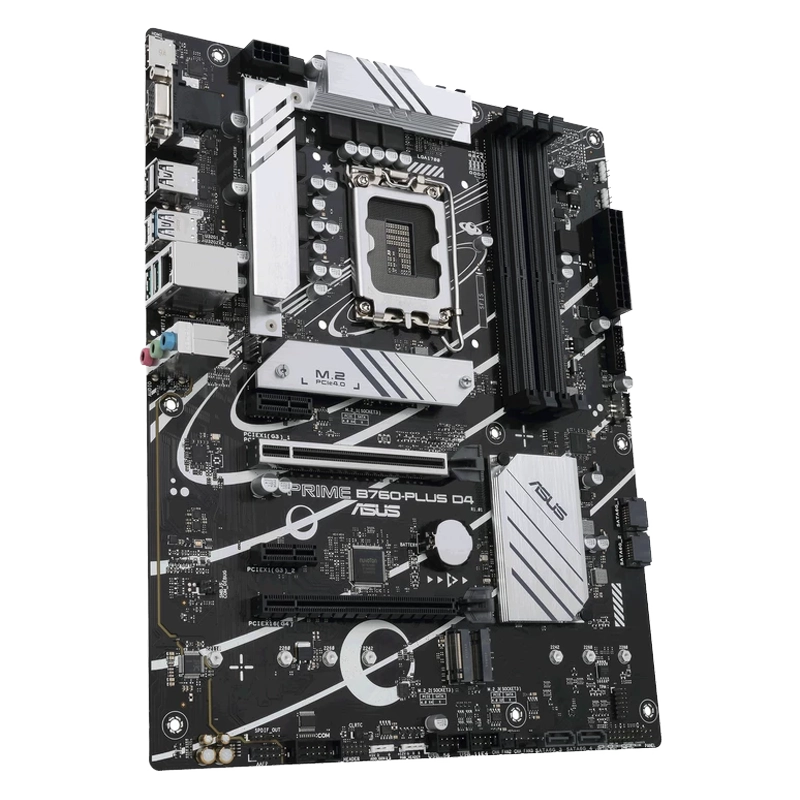

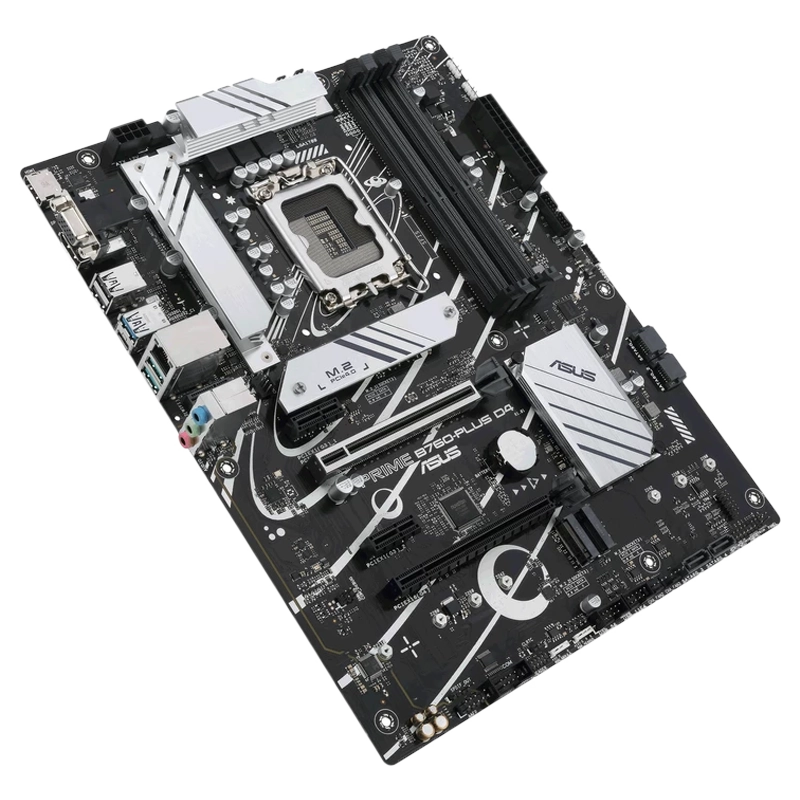

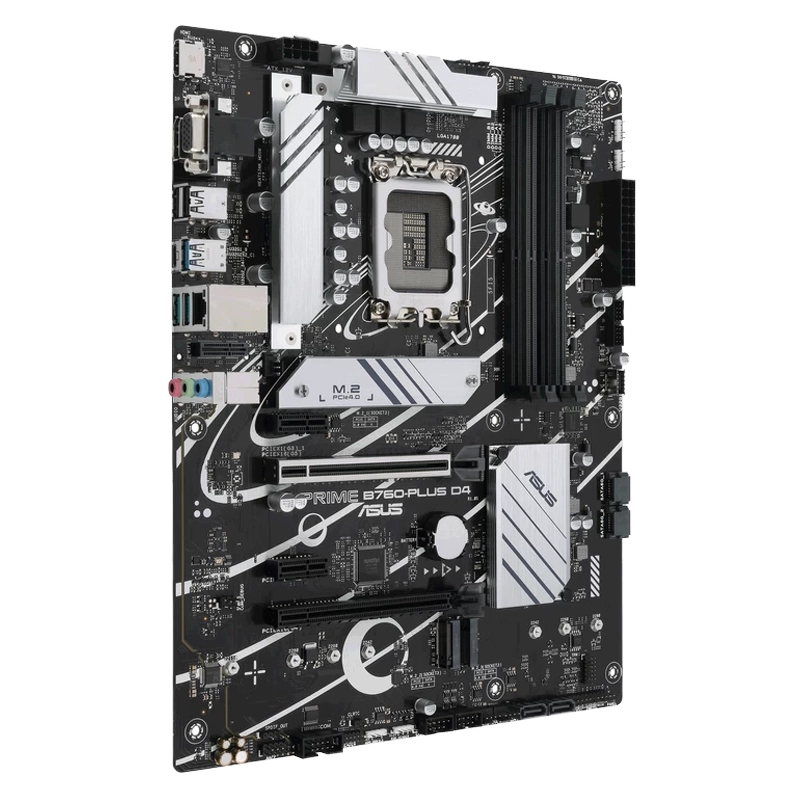

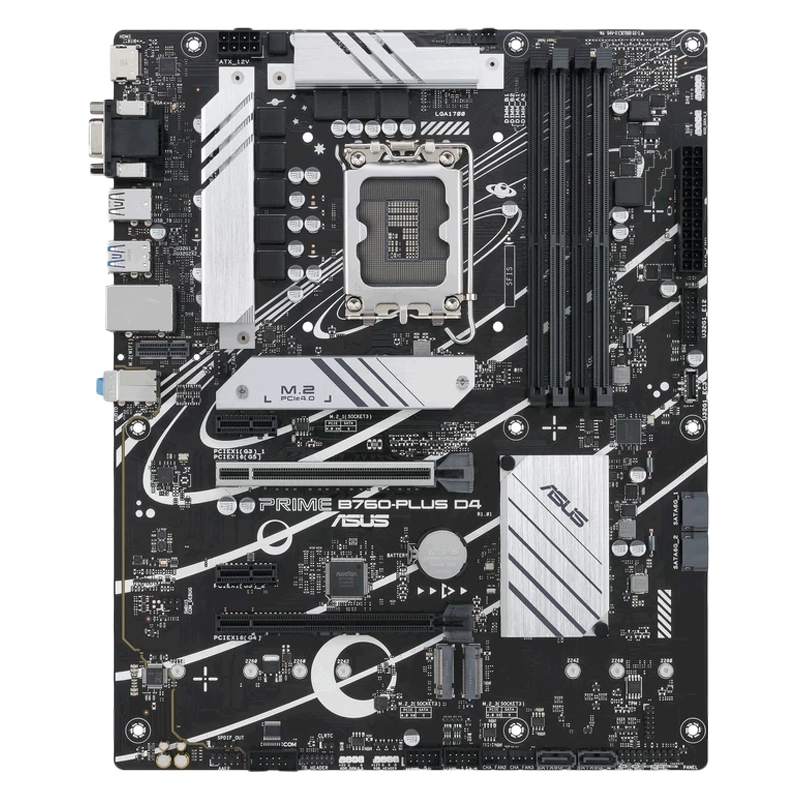

مادربرد ایسوس مدل - ASUS DDR4 b760 plus

PRIME B760-PLUS D4

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

4xDIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem

1xDisplayPort
1xVGA port
1xHDMI® port

Intel® Core™ Processors (14th & 13th & 12th Gen)
1xPCIe 5.0 x16 slot
Intel® B760 Chipset
1xPCIe 4.0 x16 slot (supports x4 mode)
2xPCIe 3.0 x1 slots

Total supports 3xM.2 slots and 4xSATA 6Gb/s ports
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4xSATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

1xRealtek 2.5Gb Ethernet

Vertical M.2 slot only (Key E, CNVi & PCIe)** Wi-Fi module is sold separately.

6 عدد

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
2xUSB 3.2 Gen 2 ports (2xType-A)
1xUSB 3.2 Gen 1 port (1xType-A)
2xUSB 2.0 ports (2xType-A)

7 عدد

1xUSB 3.2 Gen 1 connector (supports USB Type-C®)
1xUSB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®) 2xUSB 3.2 Gen 2 ports (2xType-A)
1xUSB 3.2 Gen 1 port (1xType-A) 2xUSB 2.0 ports (2xType-A) 1xDisplayPort
1xVGA port 1xHDMI® port 1xVertical M.2 slot (Key E) 1xRealtek 2.5Gb Ethernet port 3xAudio jacks

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header1x4-pin AIO Pump header3x4-pin Chassis Fan headers
Power related ( موارد مرتبط با برق)
1x24-pin Main Power connector1x8-pin +12V Power connector
Storage related (موارد مربوط به حافظه و هارد)
3xM.2 slots (Key M)4xSATA 6Gb/s ports

1xUSB 3.2 Gen 1 connector (supports USB Type-C® )
1xUSB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

3xAddressable Gen 2 headers 1xAura RGB header
1xClear CMOS header 1xCOM Port header 1xFront Panel Audio header (AAFP)
1xS/PDIF Out header 1xSPI TPM header (14-1pin)
1x20-3 pin System Panel header with Chassis intrude function 1xThunderbolt™ (USB4®) header

** ASUS 5X PROTECTION III
- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/O
** ASUS Q-Design- Q-DIMM- Q-LED Core- Q-Slot
** ASUS Thermal Solution- M.2 heatsink- VRM heatsink design
** ASUS EZ DIY- ProCool
** Aura Sync- Aura RGB header- Addressable Gen 2 headers

** ASUS Exclusive Software
Armoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power Saving AI Suite 3
- DIGI+ VRM- PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR
** UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode

Cables 2xSATA 6Gb/s cables
Miscellaneous 1xI/O Shield 1xM.2 Rubber Package 2xScrew Packages for M.2 SSD
Documentation 1xUser guide

Windows® 11, Windows® 10 64-bit

ATX Form Factor 12 inchx9.6 inch ( 30.5 cmx24.4 cm )
