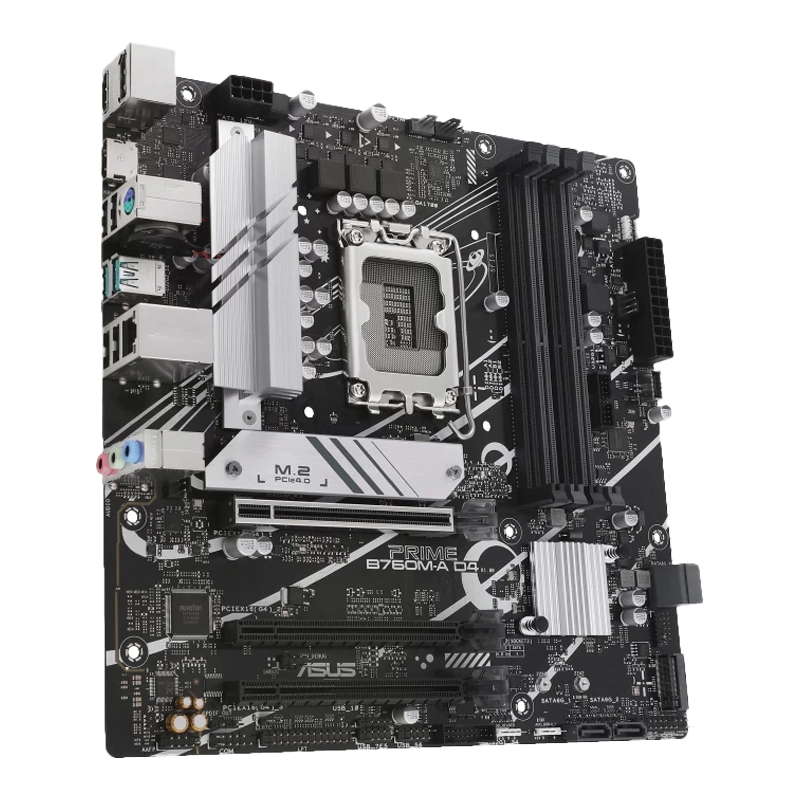

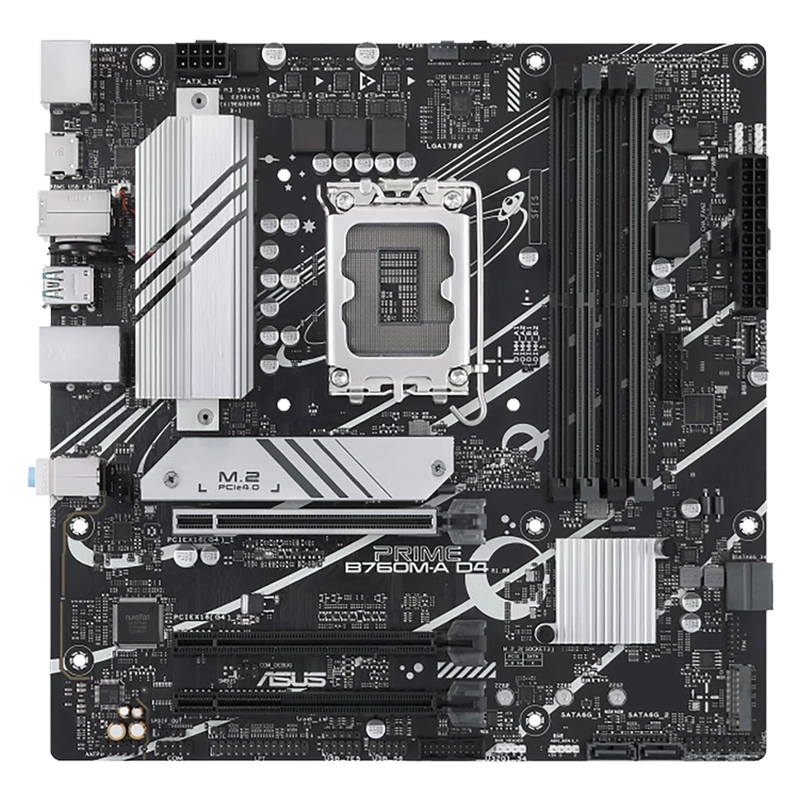

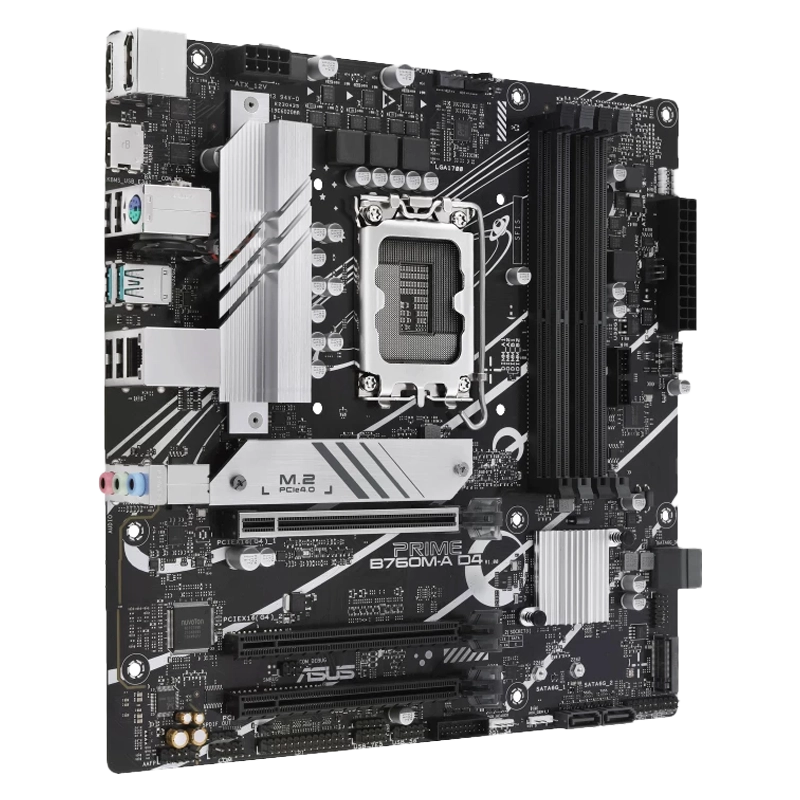

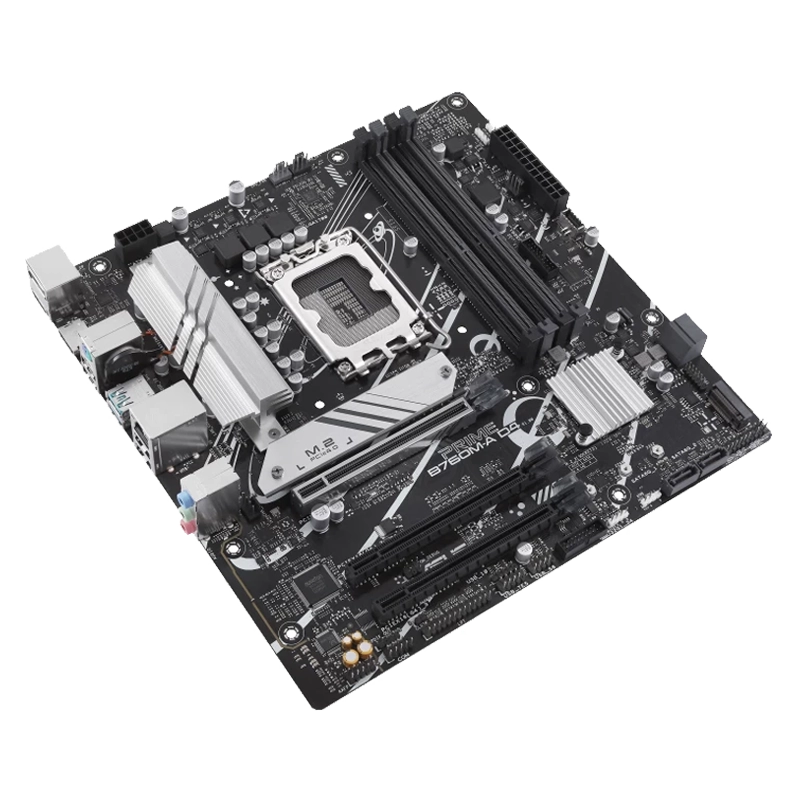

مادربرد ایسوس مدل - ASUS DDR4 b760 ma

PRIME B760M-A D4

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Intel®-B760 Chipset

4xDIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) OptiMem II

1xDisplayPort
2xHDMI® ports

Intel® CoreTM Processors (14th & 13th & 12th Gen)
1xPCIe 4.0 x16 slot
Intel® B760 Chipset
1xPCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

1xRealtek 2.5Gb Ethernet

6 عدد

2xUSB 3.2 Gen 2 ports (2xType-A )
4xUSB 2.0 ports (4xType-A)

10 عدد

2xUSB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1xUSB 3.2 Gen 1 connector (supports USB Type-C®)
2xUSB 2.0 headers support 4 additional USB 2.0 ports
1xUSB 2.0 header supports 1 additional USB 2.0 port

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers

2xUSB 3.2 Gen 2 ports (2xType-A )
4xUSB 2.0 ports (4xType-A)
1xDisplayPort
2xHDMI® ports
1xRealtek 2.5Gb Ethernet port
3xAudio jacks
1xPS/2 Keyboard/Mouse combo port

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
2x4-pin Chassis Fan headers
Power related ( موارد مرتبط با برق)
1x24-pin Main Power connector
1x8-pin +12V Power connector
Storage related (موارد مربوط به حافظه و هارد)
2xM.2 slots (Key M)
4xSATA 6Gb/s ports

2xUSB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1xUSB 3.2 Gen 1 connector (supports USB Type-C®)
2xUSB 2.0 headers support 4 additional USB 2.0 ports
1xUSB 2.0 header supports 1 additional USB 2.0 port

3xAddressable Gen 2 headers
1xAura RGB header
1xClear CMOS header
1xCOM Port header
1xFront Panel Audio header (AAFP)
1xLPT header
1xS/PDIF Out header
1xSPI TPM header (14-1pin)
1x20-3 pin System Panel header with Chassis intrude function

**ASUS 5X PROTECTION III
- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/O
**ASUS Q-Design
- Q-DIMM- Q-LED Core- Q-Slot
**ASUS Thermal Solution
- M.2 heatsink- VRM heatsink design
**ASUS EZ DIY- ProCool
**Aura Sync- Aura RGB header- Addressable Gen 2 headers

**ASUS Exclusive Software
Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3
- Digi+ VRM - PC Cleaner ASUS CPU-Z Norton Deluxe (60 Days Free Trial) WinRAR
**UEFI BIOS ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
**BIOS 128 Mb Flash ROM, UEFI AMI BIOS
**Manageability WOL by PME, PXE

** Cables2xSATA 6Gb/s cables
**Miscellaneous 1xI/O Shield 1xM.2 Rubber Package 1xScrew package for M.2 SSD
**Documentation 1xUser guide

Windows® 11, Windows® 10 64-bit

mATX Form Factor9.6 inchx9.6 inch ( 24.4 cmx24.4 cm )
