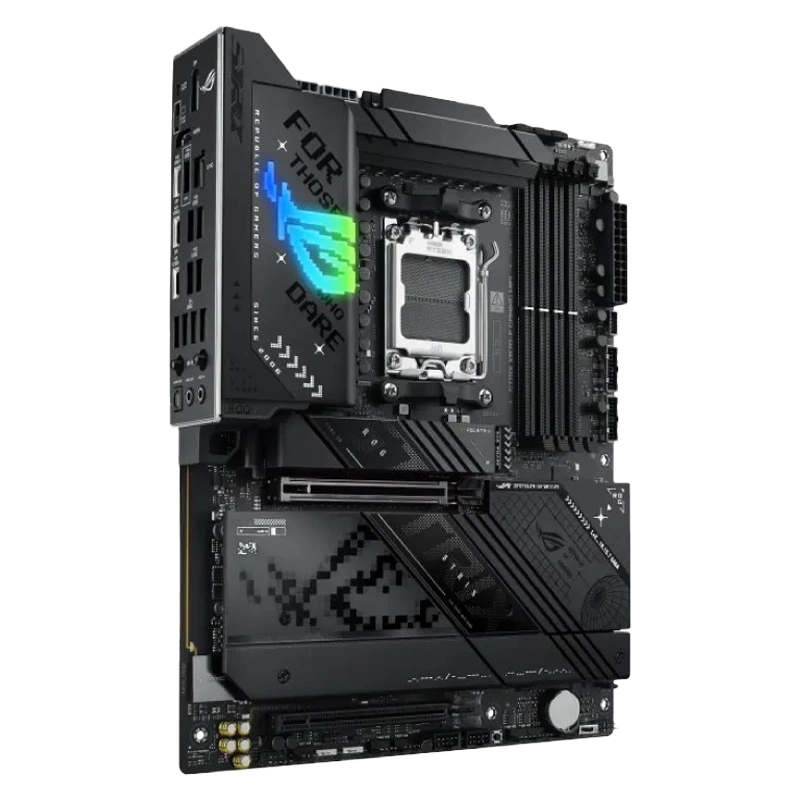

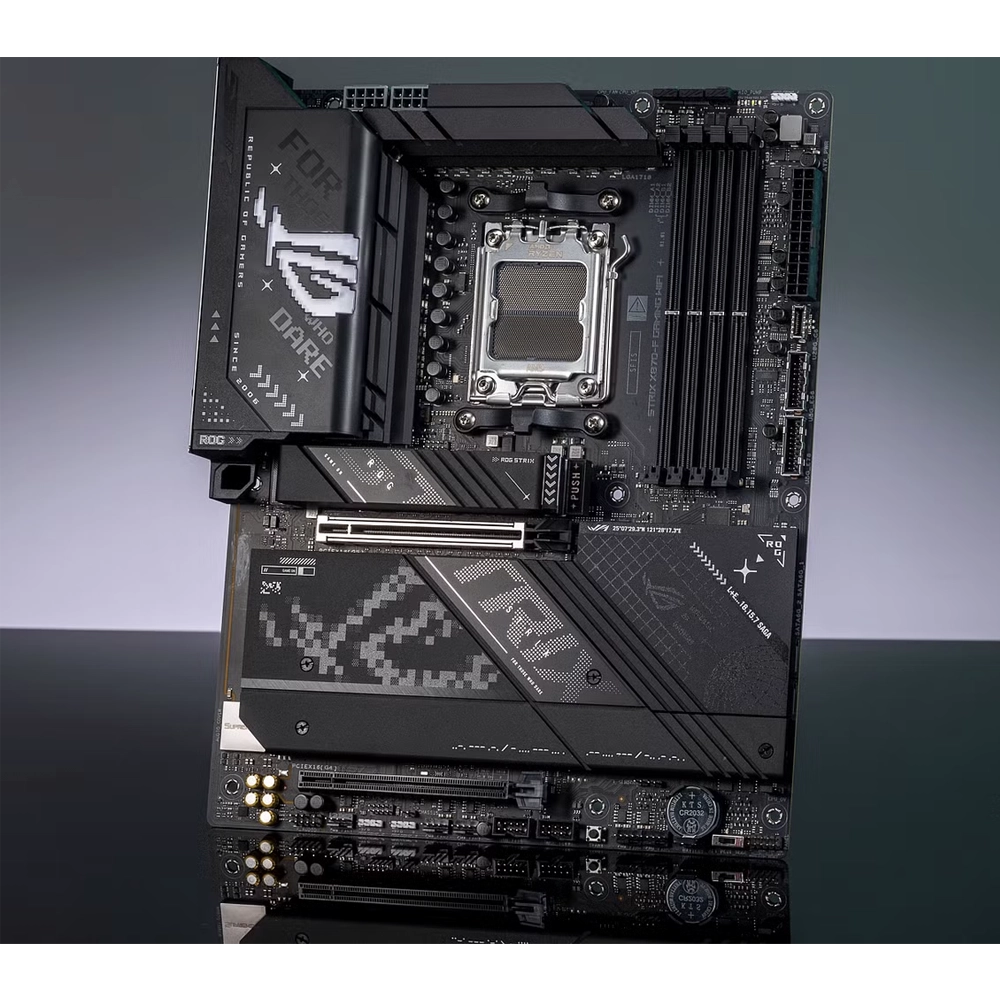

مادربرد ایسوس مدل - ASUS AMD ROG STRIX X870-F GAMING WIFI

MODEL ROG STRIX X870-F GAMING WIFI

AMD Socket AM5 for AMD Ryzen™ 9000 &
8000 & 7000 Series Desktop Processors

AMD-X870

4xDIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™
9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered
Memory"
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

1xDisplayPort
1xHDMI™ port
2xUSB4® (40Gbps) ports support USB
Type-C® display outputs

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1xPCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1xPCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
1xPCIe 4.0 x16 slot (supports x4 mode)

Supports 4xM.2 slots and 2xSATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
2xSATA 6Gb/s ports

1xIntel® 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4

12 عدد

2xUSB4® (40Gbps) ports(2xUSB Type-C® with DP Alt mode)*
6xUSB 10Gbps ports (5xType-A + 1xUSB Type-C® with up to 30W PD Fast-charge)**
4xUSB 5Gbps ports (4xType-A)

9 عدد

1xUSB 20Gbps connector (supports USB Type-C®)
2xUSB 5Gbps headers support 4 additional USB 5Gbps ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"

- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

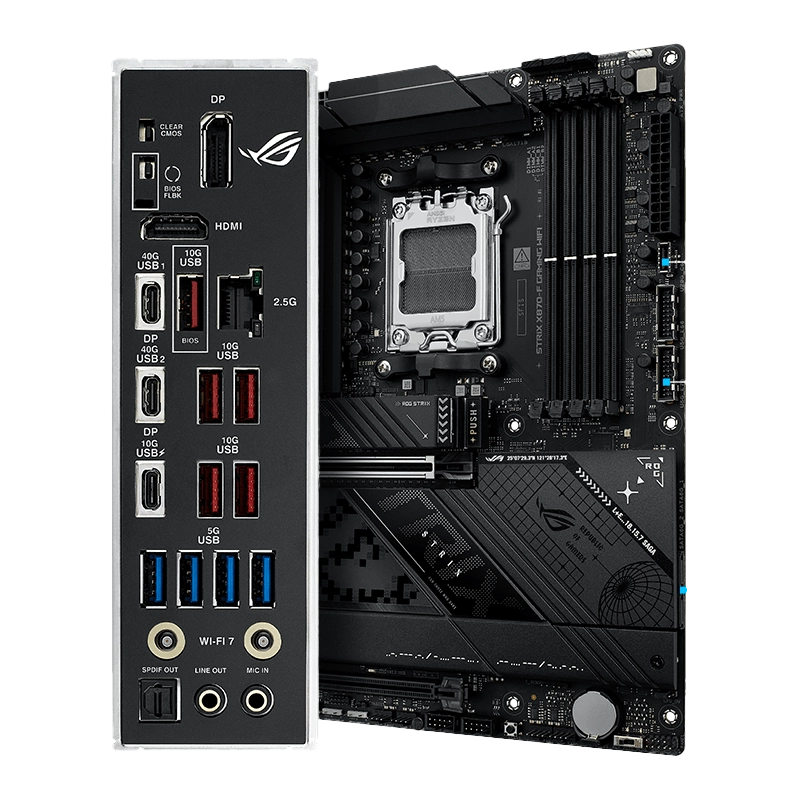

2xUSB4® (40Gbps) ports (2xUSB Type-C® with DP Alt mode)
6xUSB 10Gbps ports (5xType-A + 1xUSB Type-C® with up to 30W PD Fast-charge)**
4xUSB 5Gbps ports (4xType-A)
1xDisplayPort
1xHDMI™ port
1xWi-Fi module
1xIntel® 2.5Gb Ethernet
2xAudio jacks 
1xOptical S/PDIF out port
1xBIOS FlashBack™ button 
1xClear CMOS button 

Fan and Cooling Related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
1x4-pin AIO Pump header
5x4-pin Chassis Fan headers
Power Related (موارد مرتبط با برق)
1x24-pin Main Power connector
2x8-pin +12V CPU Power connectors
Storage Related (موارد مرتبط با حافظه و هارد)
4xM.2 slots (Key M)
2xSATA 6Gb/s ports

1xUSB 20Gbps connector (supports USB Type-C®)
2xUSB 5Gbps headers support 4 additional USB 5Gbps ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

3xAddressable Gen 2 headers
1xAlteration PCIe mode switch
1xChassis Intrusion header
1xCPU Over voltage jumper
1xFront Panel Audio header (F_AUDIO)
1xStart button
1x10-1 pin System Panel header
1xThermal Sensor header

(Extreme Engine Digi+)
- 5K Black metallic capacitors
(ASUS Q-Design )
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
(ASUS Thermal Solution)
- M.2 heatsink backplate
- M.2 heatsink
(ASUS EZ DIY)
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
(Aura Sync)
- Addressable Gen 2 headers

(ROG Exclusive Software)
- ROG CPU-Z
- Dolby Atmos
(ASUS Exclusive Software)
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
(UEFI BIOS)
AI Overclocking Guide
(ASUS EZ DIY )
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Dynamic OC Switcher
FlexKey
)BIOS(
256 Mb Flash ROM, UEFI AMI BIOS
)Manageability(
WOL by PME, PXE

1xASUS WiFi Q-Antenna
1xCable ties package
1xM.2 Q-Latch package
1xM.2 Q-Slide package
1xROG key chain
1xROG Strix stickers
4xM.2 rubber packages

Windows 11

ATX Form Factor
12inchx9.6inch( 30.5 cmx24.4 cm )
