مادربرد ایسوس مدل - ASUS DDR4 z790 tuf plus wifi

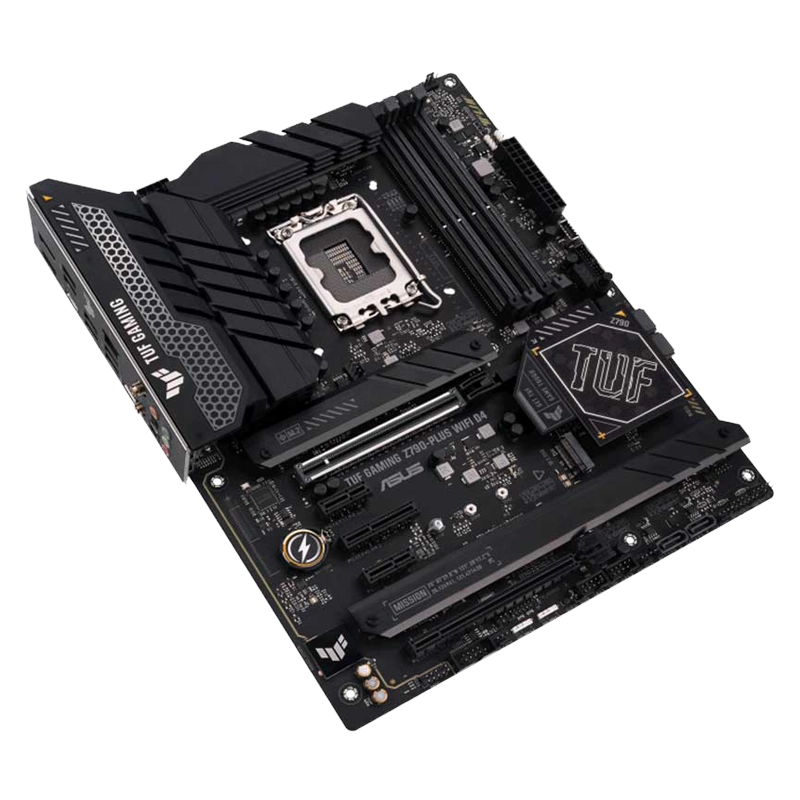

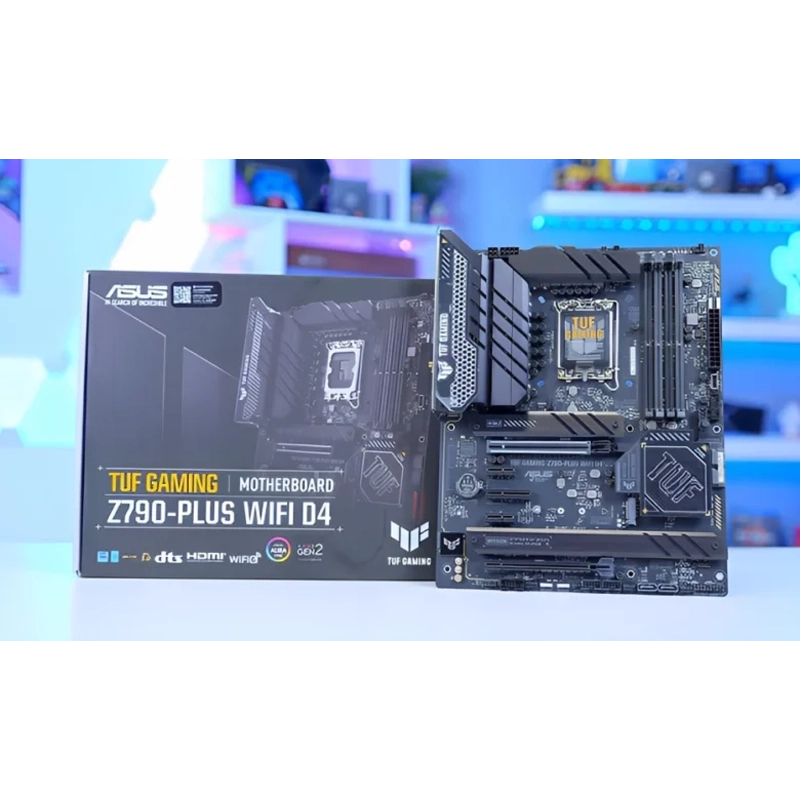

TUF GAMING Z790-PLUS WIFI D4

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Intel®-Z790 Chipset

4 x DIMM, Max. 192GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

OptiMem II

1xDisplayPort
1xHDMI® port

Intel® Core™ Processors (14th & 13th & 12th Gen)*
1xPCIe 5.0 x16 slot
Intel® Z790 Chipset
1xPCIe 4.0 x16 slot (supports x4 mode)
1xPCIe 4.0 x4 slot
2xPCIe 3.0 x1 slots

Total supports 4xM.2 slots and 4xSATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4xSATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Total supports 4xM.2 slots and 4xSATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4xSATA 6Gb/s ports

1xIntel® 2.5Gb Ethernet
TUF LANGuard

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
3xUSB 3.2 Gen 2 ports (2xType-A + 1xUSB Type-C®)
4xUSB 3.2 Gen 1 ports (4xType-A)

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
3xUSB 3.2 Gen 2 ports (2xType-A + 1xUSB Type-C®)
4xUSB 3.2 Gen 1 ports (4xType-A)

7 عدد

1xUSB 3.2 Gen 2 connector (supports USB Type-C®)
1xUSB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support additional 4 USB 2.0 ports

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback"

- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover

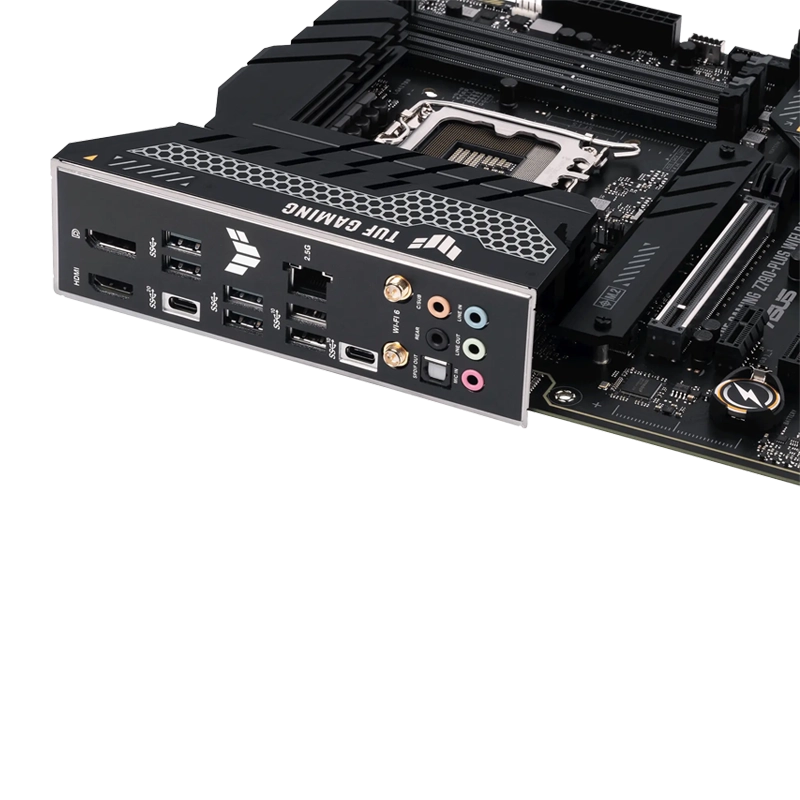

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
3xUSB 3.2 Gen 2 ports (2xType-A + 1xUSB Type-C®)
4xUSB 3.2 Gen 1 ports (4xType-A)
1xDisplayPort
1xHDMI® port
1xWi-Fi Module
1xIntel® 2.5Gb Ethernet port
5xAudio jacks
1xOptical S/PDIF out port

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
1x4-pin AIO Pump header
4x4-pin Chassis Fan headers
Power related (موارد مرتبط با برق)
1x24-pin Main Power connector
1x8-pin +12V Power connector
1x4-pin +12V Power connector
Storage related (موارد مربوط به حافظه وهارد)
4xM.2 slots (Key M)
4xSATA 6Gb/s ports

1xUSB 3.2 Gen 2 connector (supports USB Type-C®)
1xUSB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support additional 4 USB 2.0 ports

3xAddressable Gen 2 headers
1xAura RGB header
1xClear CMOS header
1xCOM Port header
1xFront Panel Audio header (AAFP)
1x20-3 pin System Panel header with Chassis intrude function
1xThunderbolt™ (USB4®) header

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

Cables
2xSATA 6Gb/s cables
Miscellaneous

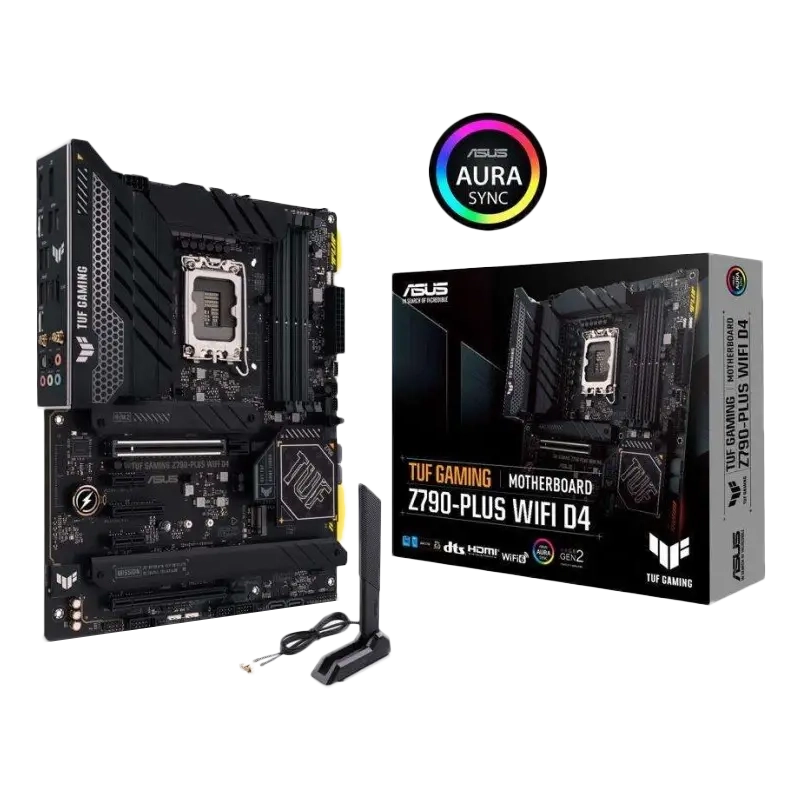

1xASUS Wi-Fi moving antenna
1xTUF GAMING sticker
2xM.2 Rubber Packages
1xScrew package for M.2 SSD
Documentation
1xTUF Certification card
1xUser guide

Windows® 11, Windows® 10 64-bit

ATX Form Factor
12 inchx9.6 inch ( 30.5 cmx24.4 cm )
