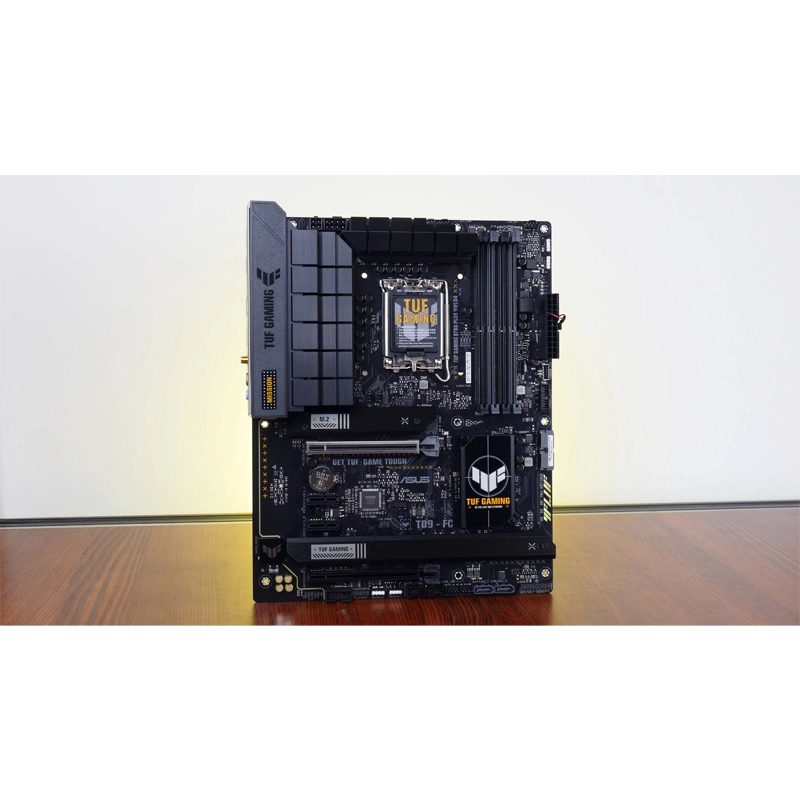

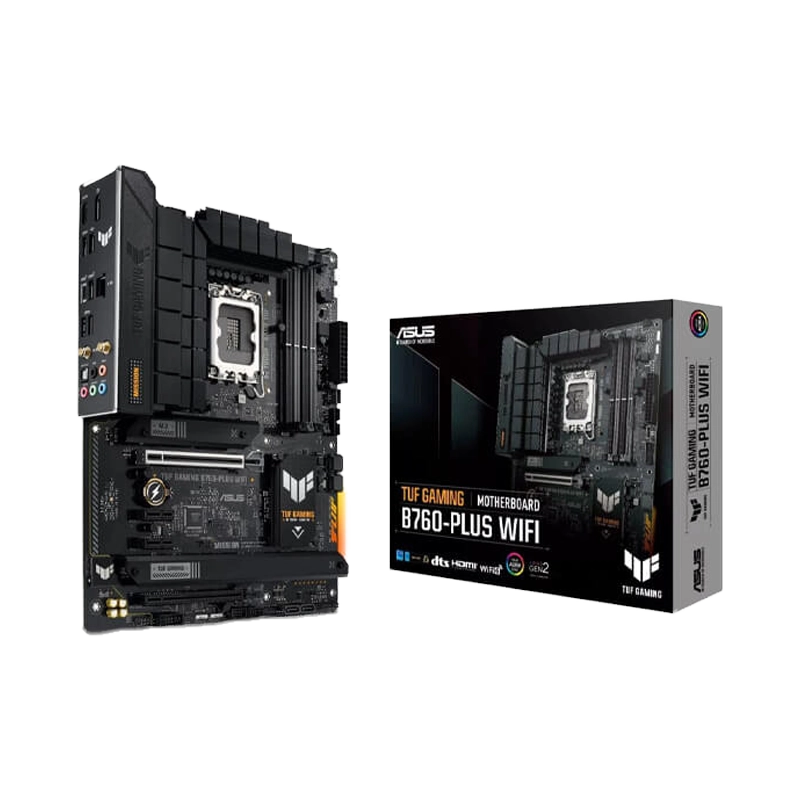

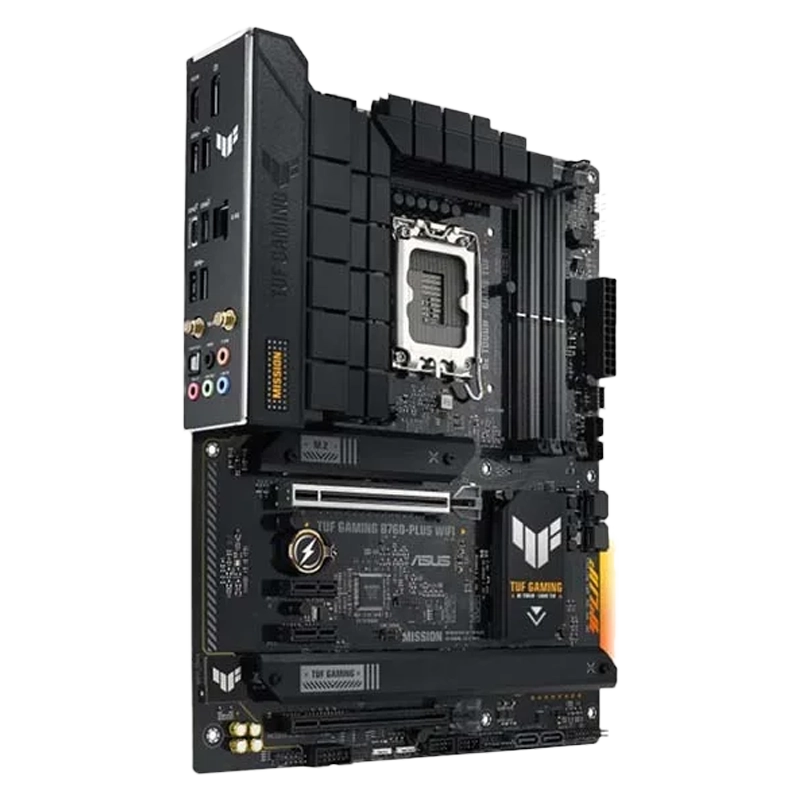

مادربرد ایسوس مدل - ASUS DDR5 b760 tuf plus wifi

TUF GAMING B760-PLUS WIFI

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Intel®-B760 Chipset

4xDIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture

1xDisplayPort
1xHDMITM port

Intel® Core™ Processors (14th & 13th & 12th Gen)
1xPCIe 5.0 x16 slot
Intel® B760 Chipset
1xPCIe 3.0 x16 slot (supports x4 mode)
2xPCIe 3.0 x1 slots
Intel® Core™ Processors (14th & 13th & 12th Gen)
1xPCIe 5.0 x16 slot
Intel® B760 Chipset
1xPCIe 3.0 x16 slot (supports x4 mode)
2xPCIe 3.0 x1 slots

Total supports 3xM.2 slots and 4xSATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4xSATA 6Gb/s ports

1xRealtek 2.5Gb Ethernet
TUF LANGuard

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2

6 عدد

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
1xUSB 3.2 Gen 2 port (1xType-A)
3xUSB 3.2 Gen 1 ports (3xType-A)
1xUSB 2.0 port (1xType-A)

7 عدد

1xUSB 3.2 Gen 2 connector (supports USB Type-C®)
1xUSB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
1xUSB 3.2 Gen 2 port (1xType-A)
3xUSB 3.2 Gen 1 ports (3xType-A)
1xUSB 2.0 port (1xType-A)
1xDisplayPort
1xHDMITM port
1xWi-Fi Module
1xRealtek 2.5Gb Ethernet port
5xAudio jacks
1xOptical S/PDIF out port

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
1x4-pin AIO Pump header
4x4-pin Chassis Fan headers
Power related (موارد مرتبط با برق)
1x24-pin Main Power connector
1x8-pin +12V Power connector
1x4-pin +12V Power connector
Storage related (موارد مربوط به حافظه وهارد)
3xM.2 slots (Key M)
4xSATA 6Gb/s ports

1xUSB 3.2 Gen 2 connector (supports USB Type-C® )
1xUSB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

3xAddressable Gen 2 headers
1xAura RGB header
1xClear CMOS header
1xCOM Port header
1xFront Panel Audio header (AAFP)
1x20-3 pin System Panel header with Chassis intrude function
1xThunderbolt™ (USB4®) header

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot Core+
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

Cables
2xSATA 6Gb/s cables
Miscellaneous
1xASUS Wi-Fi moving antenna
1xTUF Gaming sticker
2xM.2 Rubber Packages
1xScrew package for M.2 SSD
Documentation
1xTUF Certification card
1xUser guide

Windows® 11, Windows® 10 64-bit

ATX Form Factor
12inchx9.6inch ( 30.5 cmx24.4 cm )
