مادربرد ایسوس مدل - ASUS DDR5 h610 ma

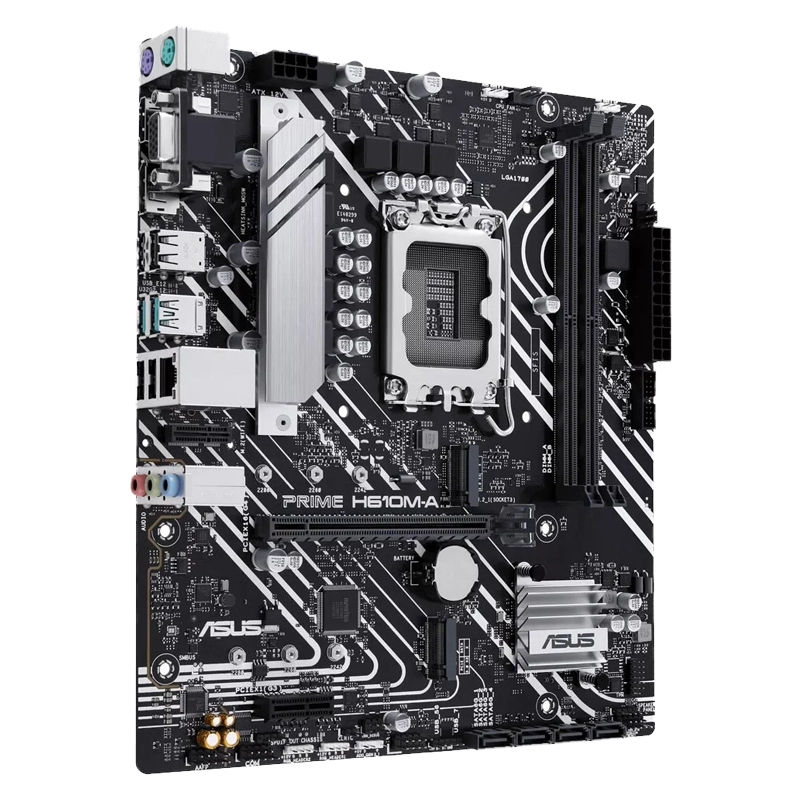

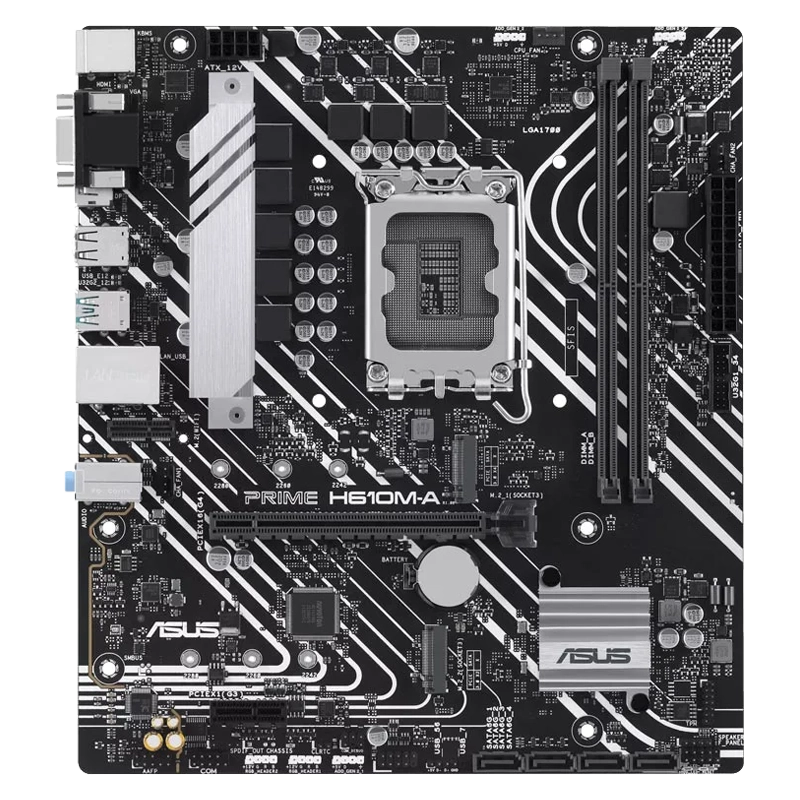

PRIME H610M-A

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th
Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and
Celeron® Processors

Intel®-H610 Chipset

2xDIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture

1xDisplayPort
1xVGA port
1xHDMITM port

Intel® Core™ Processors (14th &13th & 12th Gen)*
1xPCIe 4.0 x16 slot
Intel® H610 Chipset
1xPCIe 3.0 x1 slot

Total supports 2xM.2 slots and 4xSATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4xSATA 6Gb/s ports

1xIntel® 1Gb Ethernet
ASUS LANGuard

Vertical M.2 slot only (Key E, CNVi & PCIe)

6 عدد

2xUSB 3.2 Gen 2 (10G) ports (2xType-A)
4xUSB 2.0 ports (4xType-A)

5 عدد

1xUSB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1xUSB 2.0 header supports 1 USB 2.0 port
1xUSB 2.0 header supports additional 2 USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

2xUSB 3.2 Gen 2 (10G) ports (2xType-A)
4xUSB 2.0 ports (4xType-A)
1xDisplayPort
1xVGA port
1xHDMITM port
1xVertical M.2 slot (Key E)
1xIntel® 1Gb Ethernet port
3xAudio jacks
1xPS/2 Keyboard (purple) port
1xPS/2 Mouse (green) port

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
2x4-pin Chassis Fan headers
Power related (موارد مرتبط با برق)
1x24-pin Main Power connector
1x8-pin +12V Power connector
Storage related (موارد مربوط به حافظه وهارد)
2xM.2 slots (Key M)
4xSATA 6Gb/s ports

1xUSB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1xUSB 2.0 header supports 1 USB 2.0 port
1xUSB 2.0 header supports additional 2 USB 2.0 ports

3xAddressable Gen 2 headers
2xAURA RGB headers
1xClear CMOS header
1xFront Panel Audio header (AAFP)
1xCOM Port header
1xS/PDIF Out header
1xSpeaker header
1xSPI TPM header (14-1pin)
1x10-1 pin System Panel header

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

Cables
2xSATA 6Gb/s cables
Miscellaneous
1xI/O Shield
1xScrew package for M.2 SSD
Documentation
1xUser guide

Windows® 11 64-bit, Windows® 10 64-bit

mATX Form Factor
9.6inchx8.5inch ( 24.4 cmx21.6 cm )
