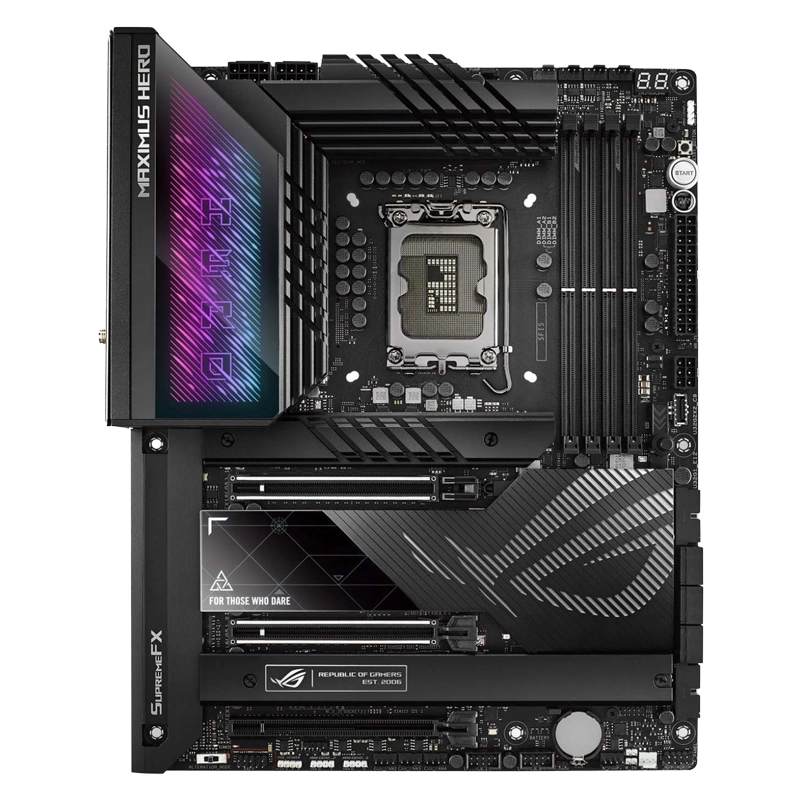

مادربرد ایسوس مدل - ASUS DDR5 z790 hero

ROG MAXIMUS Z790 HERO

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Intel®-Z790 Chipset

4xDIMM, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture

1xHDMITM port
2xIntel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs

Intel® CoreTM Processors (14th & 13th & 12th Gen)
2xPCIe 5.0 x16 slots (support x16 or x8/x8 modes)
Intel® Z790 Chipset
1xPCIe 4.0 x16 slot (supports x4, x4/x4 modes)

Total supports 5xM.2 slots and 6xSATA 6Gb/s ports
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.)
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)
6xSATA 6Gb/s ports

1xIntel® 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3

12 عدد

2xThunderbolt™ 4 ports (2xUSB Type-C®)
6xUSB 3.2 Gen 2 ports (5xType-A + 1xUSB Type-C®)
4xUSB 3.2 Gen 1 ports (4xType-A)

9 عدد

1xUSB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)
2xUSB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2xUSB 2.0 headers support additional 4 USB 2.0 ports

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Support up to 32-Bit/ 384 kHz playback on front panel

- SupremeFX Shielding Technology
- ESS® ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

2xThunderbolt™ 4 USB Type-C® ports
6xUSB 3.2 Gen 2 ports (5xType-A + 1xUSB Type-C®)
4xUSB 3.2 Gen 1 ports (4xType-A)
1xHDMI® port
1xWi-Fi Module
1xIntel® 2.5Gb Ethernet port
5xGold-plated audio jacks*
1xOptical S/PDIF out port
1xBIOS FlashBack™ button
1xClear CMOS button

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
1x4-pin AIO Pump header
4x4-pin Chassis Fan headers
1xW_PUMP+ header
1x2-pin Water In header
1x2-pin Water Out header
1x3-pin Water Flow header
Power related (موارد مرتبط با برق)
1x24-pin Main Power connector
2x8-pin +12V Power connector
1x6-pin PCIe Power connector
Storage related (موارد مربوط به حافظه وهارد)
3xM.2 slots (Key M)
6xSATA 6Gb/s ports

1xUSB 3.2 Gen 2x2 connector (supports USB Type-C® )
2xUSB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2xUSB 2.0 headers support additional 4 USB 2.0 ports

3xAddressable Gen 2 headers
1xAURA RGB header
1xFlexKey button
1xFront Panel Audio header (AAFP)
1xStart button
1xReTry button
1x10-1 pin System Panel header
1xThermal Sensor header
1xCPU Over Voltage jumper
1xAlternative PCIe Mode switch

Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Steel backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS

ROG Exclusive Software
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- BullGuard or equivalent internet security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ Power Control
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

Cables
1xARGB RGB extension cable
4xSATA 6Gb/s cables
ROG Hyper M.2 Card
1xROG Hyper M.2 Card with heatsink
2xM.2 screw packages for ROG Hyper M.2 Card
Additional Cooling Kit
1xThermal pad for M.2
1xDDR5 Fan holder
1xVRM Fan holder
Miscellaneous
1xASUS Wi-Fi moving antennas
3xM.2 backplate Q-Latch package
3xM.2 backplate Rubber Packages
1xQ-connector
1xROG stickers
1xROG key chain
1xROG VIP card
Installation Media
1xUSB drive with utilities and drivers
Documentation
1xUser Guide

Windows® 11, Windows® 10 64-bit

ATX Form Factor
12 inchx9.6 inch ( 30.5 cmx24.4 cm )
