مادربرد ایسوس مدل - ASUS DDR5 z790 I wifi rog

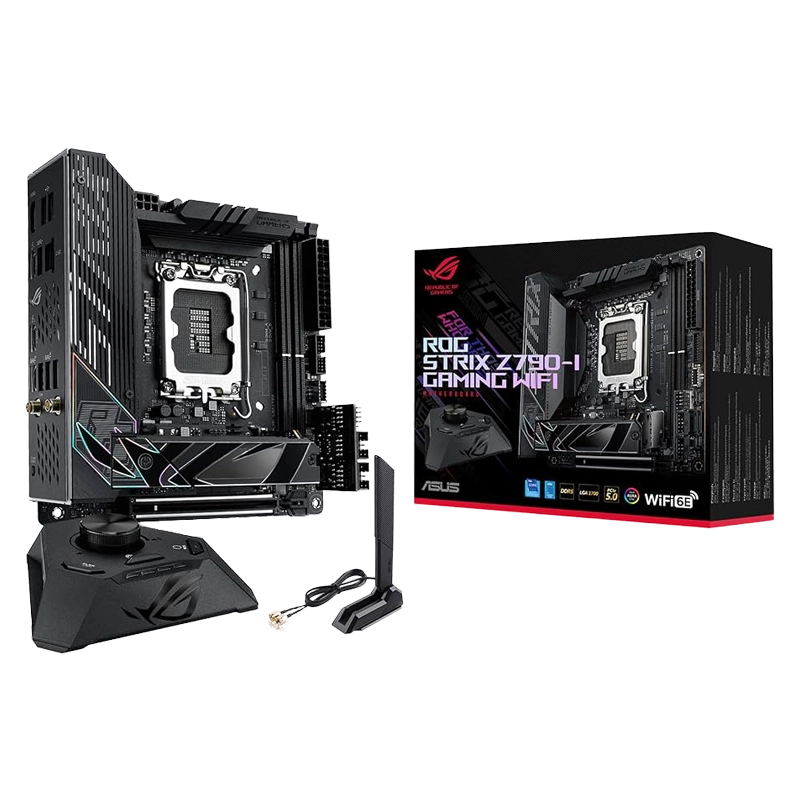

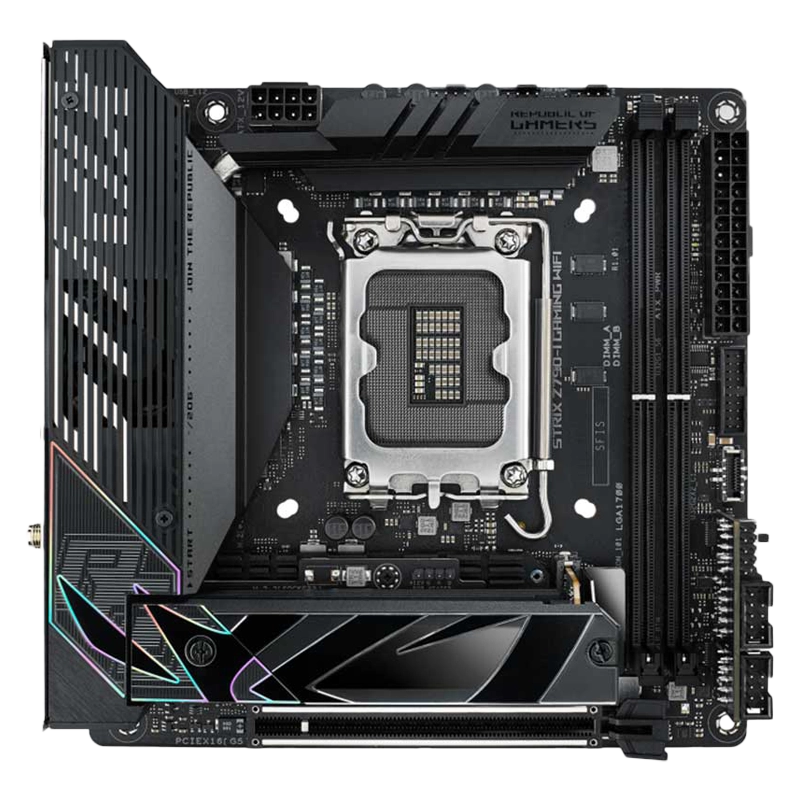

ROG STRIX Z790-I GAMING WIFI

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Intel®-Z790 Chipset

2 x DIMM, Max. 96GB, DDR5
7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture

1xHDMI® port
2xIntel® Thunderbolt™ 4 ports (USB
Type-C®) support DisplayPort and Thunderbolt™ video outputs

Intel® 14th & 13th & 12th Gen Processors*
1xPCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)

Total supports 2xM.2 slots and 2xSATA
6Gb/s ports
Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2280 (supports
PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2xSATA 6Gb/s ports

1xIntel® 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3

9 عدد

2xThunderbolt™ 4 port(s) (2xUSB
Type-C®)
1xUSB 3.2 Gen 2x2 port(s) (1xUSB
Type-C®)
3xUSB 3.2 Gen 2 port(s) (3xType-A)
1xUSB 3.2 Gen 1 port(s) (1xType-A)
2xUSB 2.0 port(s) (2xType-A)

3عدد

1xUSB 3.2 Gen 2x2 connector supports 1
USB Type-C®
1xUSB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports

ROG High Definition Audio CODEC ALC4050
- Supports: Jack-detection
- High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Silver-plated audio jacks
- Optical S/PDIF out port & USB Type-C® port with indepent power solution

2xThunderbolt™ 4 USB Type-C® port(s)
1xUSB 3.2 Gen 2x2 port(s) (1xUSB
Type-C®)
3xUSB 3.2 Gen 2 port(s) (3xType-A)
(supports ROG STRIX HIVE)
1xUSB 3.2 Gen 1 port(s) (1xType-A)
2xUSB 2.0 port(s) (2xType-A)
1xHDMI® port
1xWi-Fi Module
1xIntel® 2.5Gb Ethernet port
1xClear CMOS button

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header(s)
1x4-pin AIO Pump header(s)
1x4-pin Chassis Fan header(s)
Power related (موارد مرتبط با برق)
1x24-pin Main Power connector
1x8-pin +12V Power connector
Storage related (موارد مربوط به حافظه وهارد)
2xM.2 slots (Key M)

1xUSB 3.2 Gen 2x2 connector (support(s)
USB Type-C® )
1xUSB 3.2 Gen 1 header(s) support(s) 2
additional USB 3.2 Gen 1 ports

1xAddressable Gen 2 header(s)
1xAura RGB header(s)
1xThermal Sensor header
2xUSB Type-C® connectors to Install ROG
FPS-II card
ROG FPS-II card
2xSATA 6Gb/s ports
1xCPU Over Voltage jumper
1xThermal Sensor header
1xFront Panel header
1xAlternative PCIe Mode switch
2xUSB 2.0 header(s) support(s) additional
3 USB 2.0 ports

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header(s)
- Addressable Gen 2 header(s)
ROG STRIX HIVE
1xUSB Type-C® connects to Motherboard
1xUSB 3.2 Gen 2 port(s) (1xUSB Type-C®)
1xUSB 2.0 port(s) (1xType-A with BIOS
FlashBack™)
1xHeadphone jack with Mic in
1xMic in jack with Optical S/PDIF out
1xAI OC button
1xFlexKey button
1xBIOS FlashBack™ button
1xVolume Control Knob with Mute Button
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

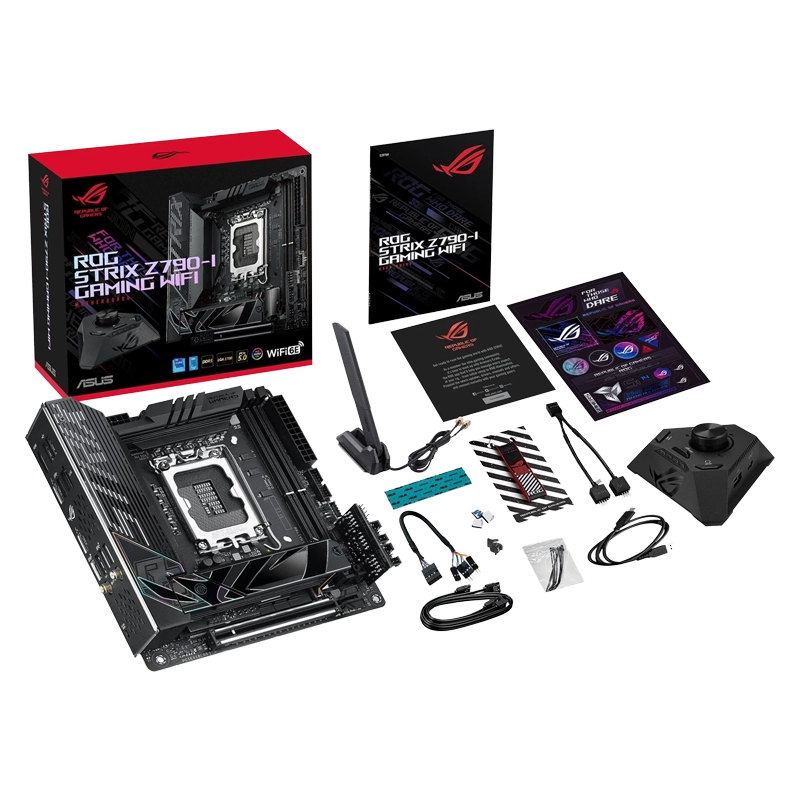

Cables
2xSATA 6Gb/s cables
1xROG USB2.0 splitter cable
1xPanel Cable
ROG FPS-II Card
1xROG FPS-II Card
ROG STRIX HIVE
1xROG STRIX HIVE
1xUSB Type-C® power connection cable
Additional Cooling Kit
1xThermal pad for M.2
Miscellaneous
1xASUS Wi-Fi moving antennas
1xCable ties pack
1xRubber Package(s) for M.2
1xQ-Latch package(s) for M.2
1xROG key chain
1xROG Strix stickers
1xROG Strix thank you card
Installation Media1xUser guide

Windows® 11, Windows® 10 64-bit

Mini-ITX Form Factor
6.7 inchx6.7 inch( 17cmx17cm)
