مادربرد ایسوس مدل - ASUS DDR5 z790 p wifi d5

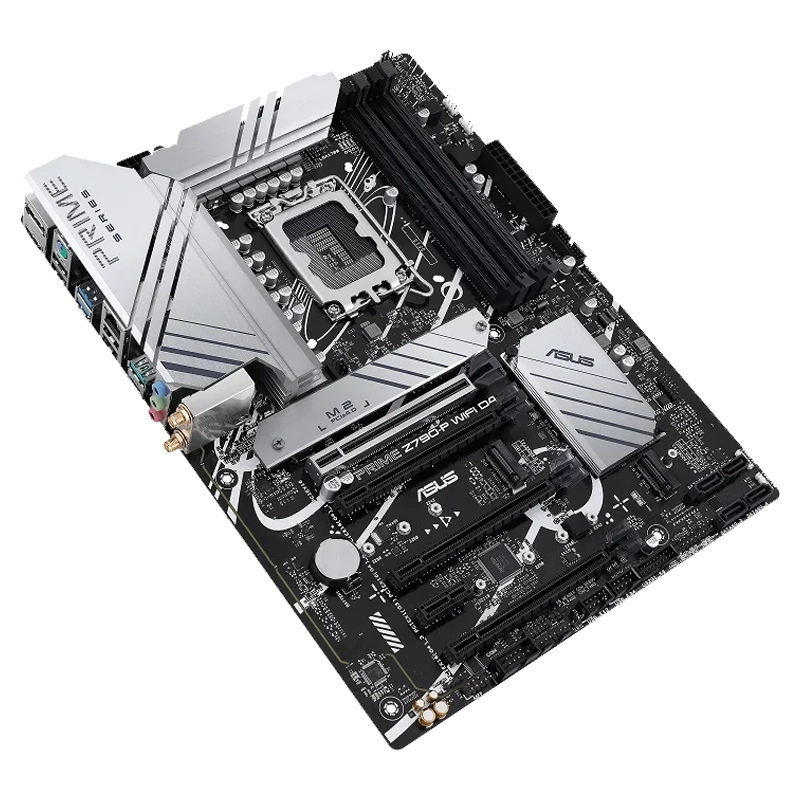

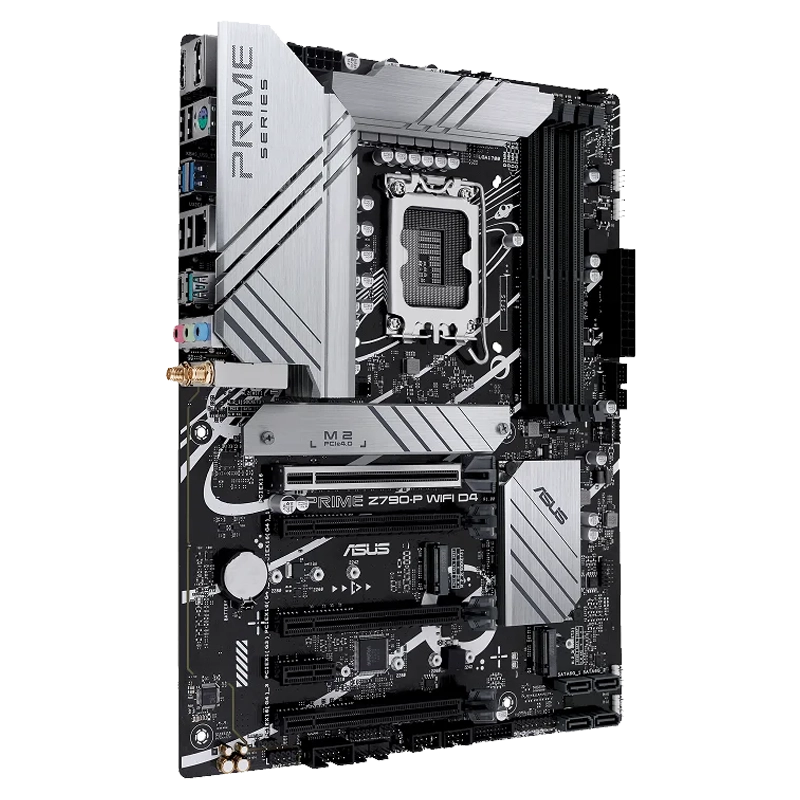

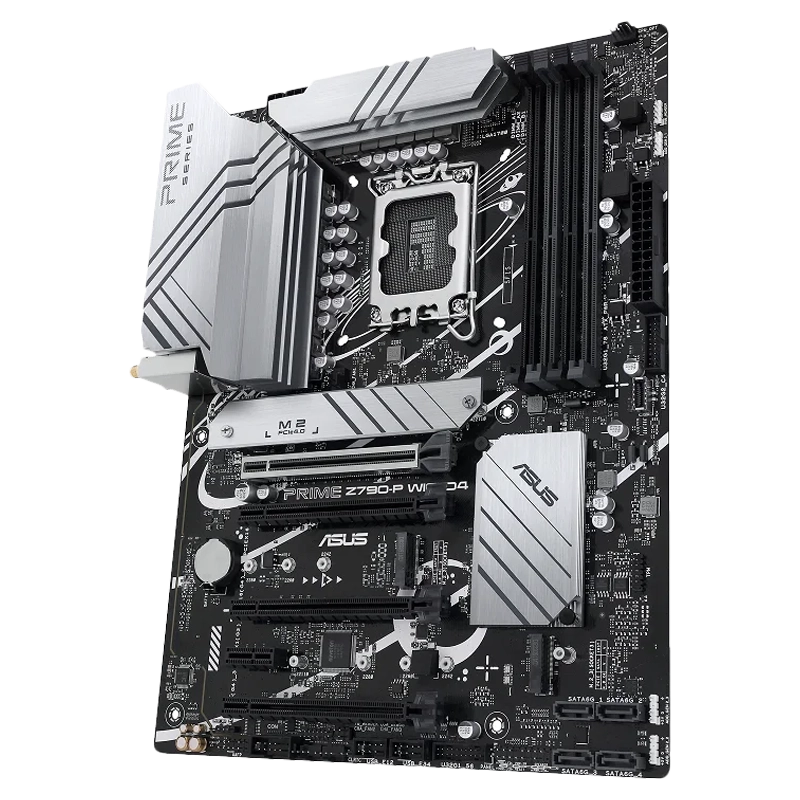

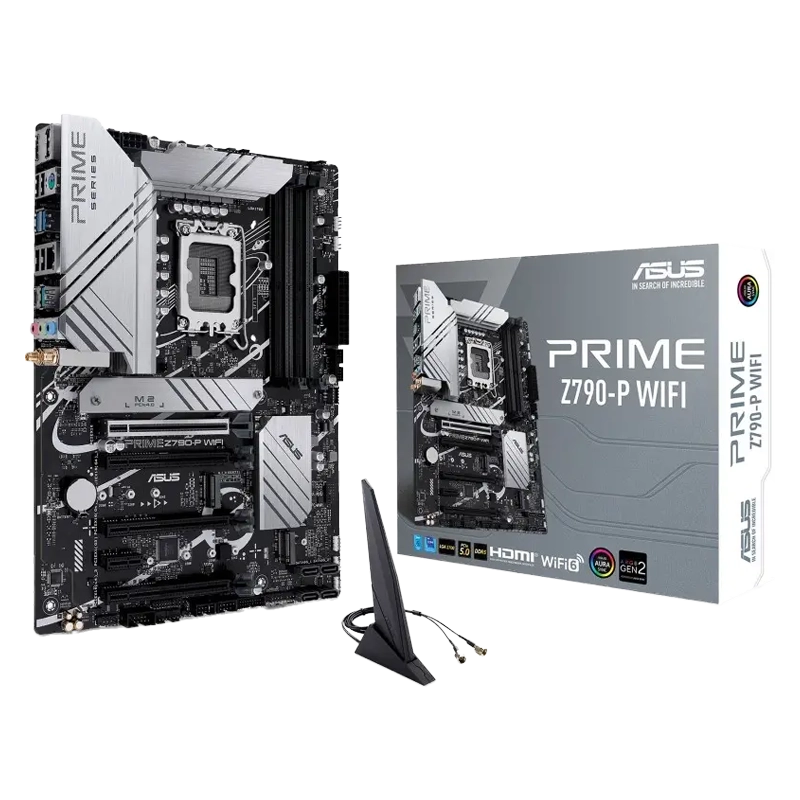

PRIME Z790-P WIFI

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Intel®-Z790 Chipset

4xDIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture

1xDisplayPort
1xHDMI® port

Intel® Core™ Processors (14th & 13th & 12th Gen)*
1xPCIe 5.0 x16 slot
Intel® Z790 Chipset
3xPCIe 4.0 x16 slots (support x4 mode)
1xPCIe 3.0 x1 slot

Total supports 3xM.2 slots and 4xSATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4xSATA 6Gb/s ports

1xRealtek 2.5Gb Ethernet

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2

8 عدد

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
1xUSB 3.2 Gen 2 port (1xType-A)
2xUSB 3.2 Gen 1 ports (2xType-A)
4xUSB 2.0 ports (4xType-A)

9 عدد

1xUSB 3.2 Gen 2 connector (supports USB Type-C®)
2xUSB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

1xUSB 3.2 Gen 2x2 port (1xUSB Type-C®)
1xUSB 3.2 Gen 2 port (1xType-A)
2xUSB 3.2 Gen 1 ports (2xType-A)
4xUSB 2.0 ports (4xType-A)
1xDisplayPort
1xHDMI® port
1xWi-Fi Module
1xRealtek 2.5Gb Ethernet port
3xAudio jacks
1xPS/2 Keyboard/Mouse combo port

Fan and Cooling related (موارد مرتبط با فن و خنک‌کننده)
1x4-pin CPU Fan header
1x4-pin CPU OPT Fan header
1x4-pin AIO Pump header
3x4-pin Chassis Fan headers
Power related (موارد مرتبط با برق)
1x24-pin Main Power connector
1x8-pin +12V Power connector
1x4-pin +12V Power connector
Storage related (موارد مربوط به حافظه وهارد)
3xM.2 slots (Key M)
4xSATA 6Gb/s ports

1xUSB 3.2 Gen 2 connector (supports USB Type-C®)
2xUSB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2xUSB 2.0 headers support 4 additional USB 2.0 ports

3xAddressable Gen 2 headers
2xAura RGB headers
1xClear CMOS header
1xCOM Port header
1xFront Panel Audio header (AAFP)
1xS/PDIF Out header
1xSPI TPM header (14-1pin)
1x20-5pin System Panel header
1xThunderbolt™ (USB4®) Header

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB headers
- Addressable Gen 2 headers

ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

Cables
2xSATA 6Gb/s cables
Miscellaneous
1xASUS Wi-Fi moving antennas
1xI/O Shield
1xM.2 Rubber Package
2xScrew packages for M.2 SSD
Documentation
1xUser guide

Windows® 11, Windows® 10 64-bit

ATX Form Factor
12 inchx9.2 inch ( 30.5 cmx23.4 cm )
