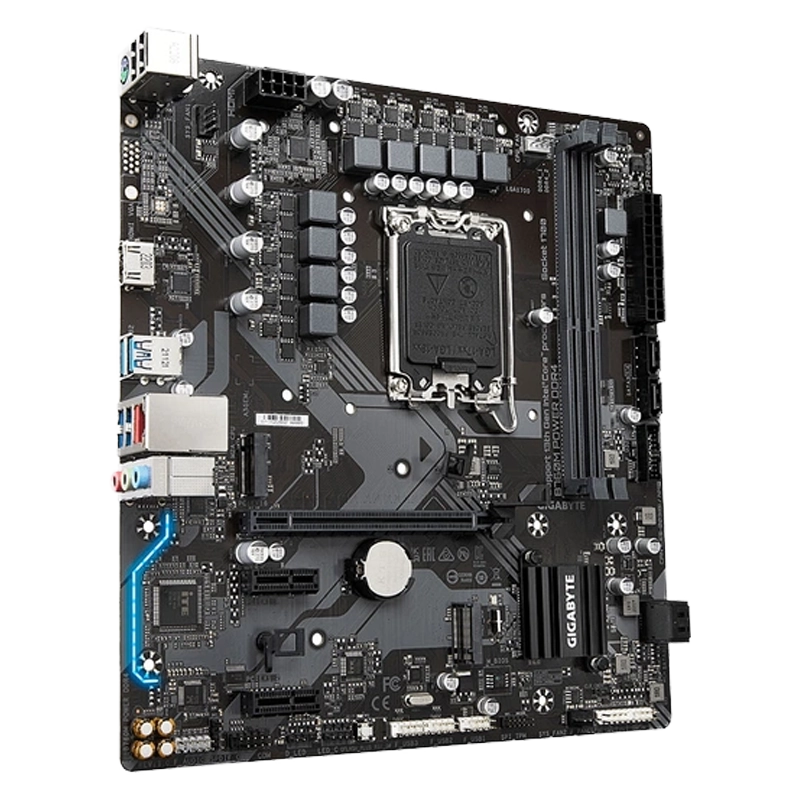

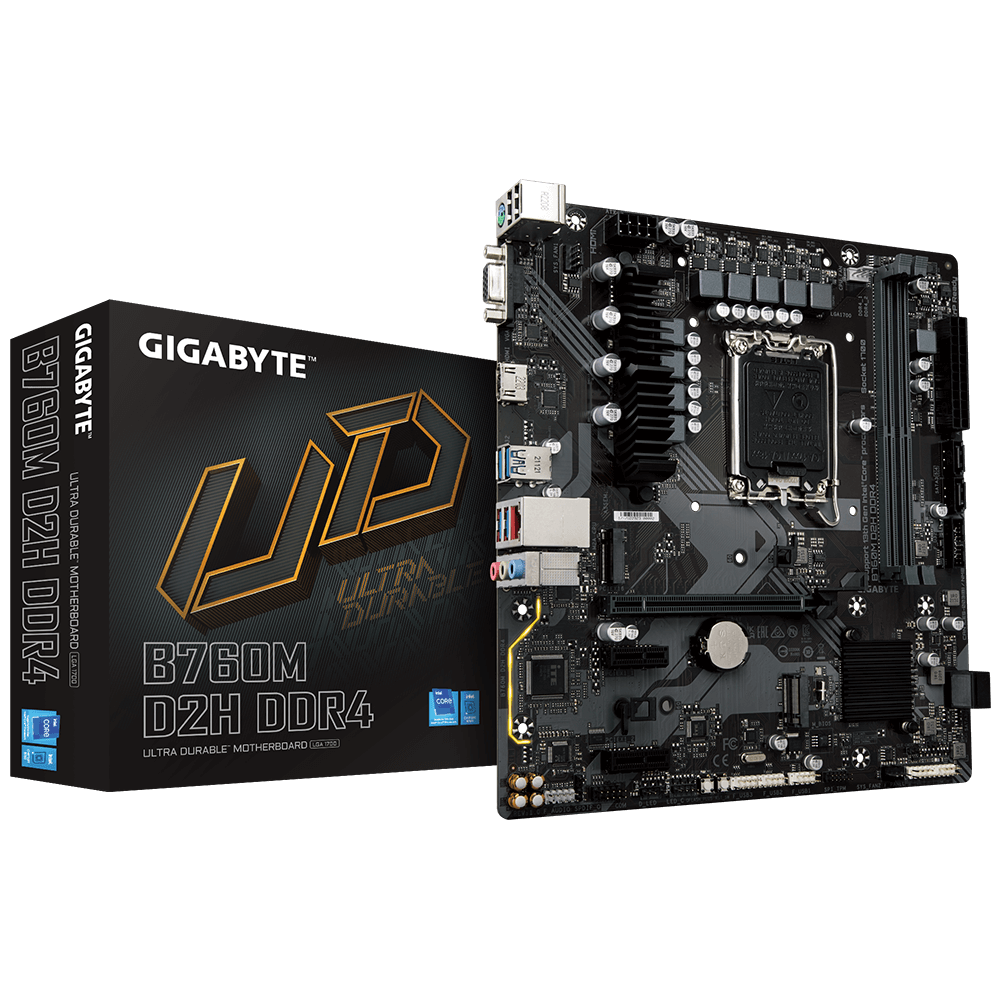

مادربرد گیگابایت مدل - GIGABYTE B760M D2H DDR4 rev. 1.0

B760M D2H DDR4 (rev. 1.0)

1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
2. L3 cache varies with CPU

Intel® B760 Express Chipset

• Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
• 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• 1xD-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1xHDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1xPCI Express x16 slot, supporting PCIe 4.0 and running at x16

2xPCI Express x1 slots, supporting PCIe 3.0 and running at x1

CPU:
1. 1xM.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2. 1xM.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
3. 4xSATA 6Gb/s connectors

Chipset:
6xUSB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4xUSB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
4xUSB 2.0/1.1 ports available through the internal USB headers

• 1x24-pin ATX main power connector
• 1x8-pin ATX 12V power connector
• 1xCPU fan header
• 2xsystem fan headers
• 1xaddressable LED strip header
• 1xRGB LED strip header
• 2xM.2 Socket 3 connectors
• 4xSATA 6Gb/s connectors
• 1xfront panel header
• 1xfront panel audio header
• 1xS/PDIF Out header
• 1xUSB 3.2 Gen 1 header
• 3xUSB 2.0/1.1 headers
• 1xTrusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1xserial port header
• 1xQ-Flash Plus button
• 1xreset button
• 1xreset jumper
• 1xClear CMOS jumper

• 1xPS/2 keyboard/mouse port
• 1xD-Sub port
• 1xHDMI port
• 4xUSB 3.2 Gen 1 ports
• 2xUSB 2.0/1.1 ports
• 1xRJ-45 port
• 3xaudio jacks

iTE® I/O Controller Chip

• H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
• 1x128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Micro ATX Form Factor; 24.4cmx22.5cm
