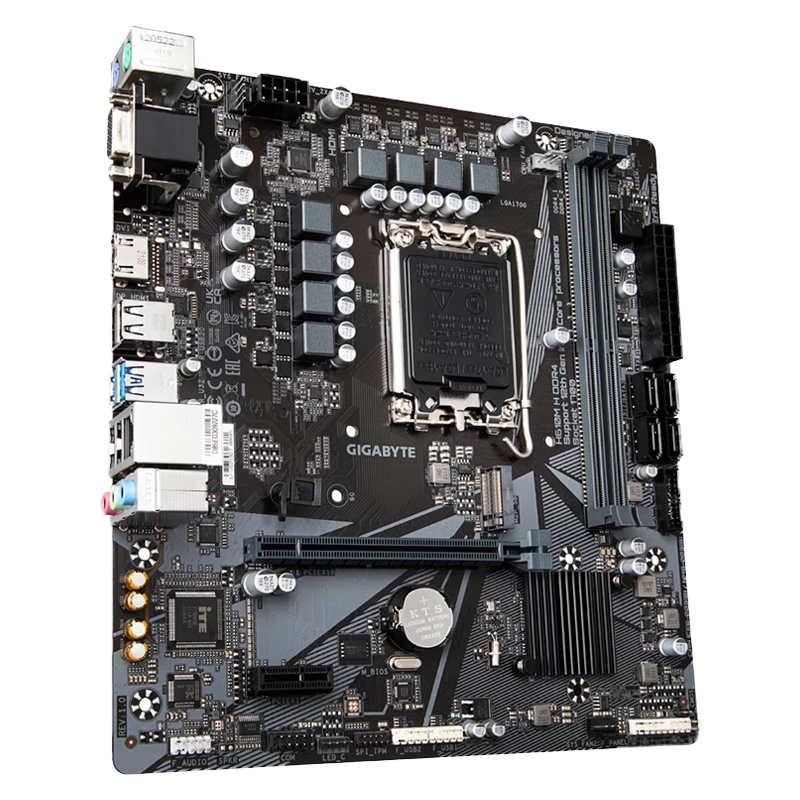

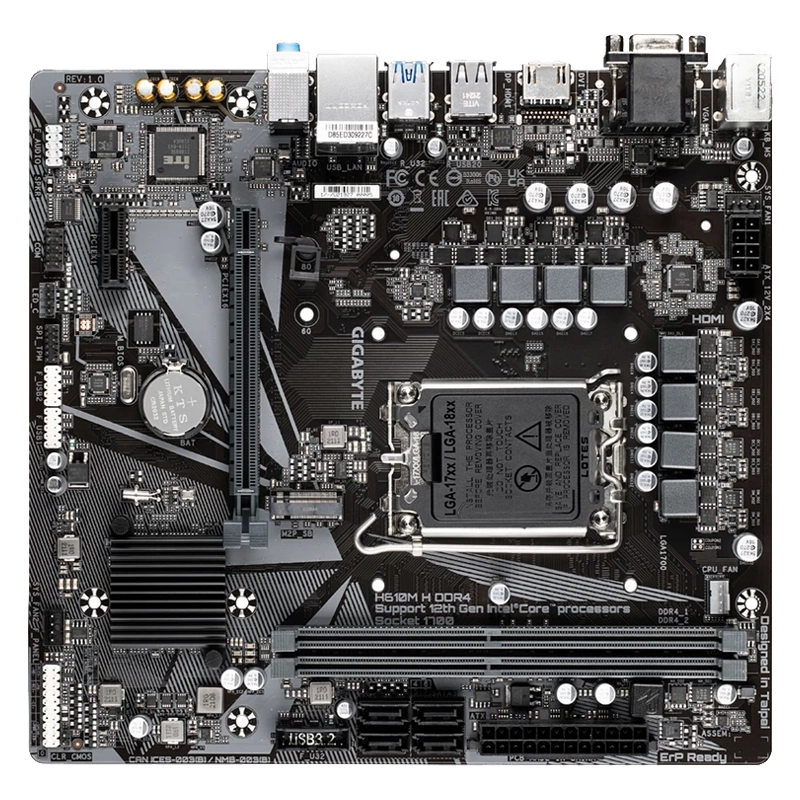

مادربرد گیگابایت مدل - GIGABYTE DDR4 h610 mh d4

Mb h610 mh d4

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU

Intel® H610 Express Chipset

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Intel® GbE LAN chip (1 Gbps/100 Mbps)

1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Chipset:
1xM.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
4xSATA 6Gb/s connectors

Chipset:
4xUSB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4xUSB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4xUSB 2.0/1.1 ports available through the internal USB headers

1x24-pin ATX main power connector
1x8-pin ATX 12V power connector
1xM.2 Socket 3 connector
4xSATA 6Gb/s connectors
1xCPU fan header
2xsystem fan headers
1xRGB LED strip header
1xfront panel header
1xfront panel audio header
1xUSB 3.2 Gen 1 header
2xUSB 2.0/1.1 headers
1xTrusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1xserial port header
1xClear CMOS jumper

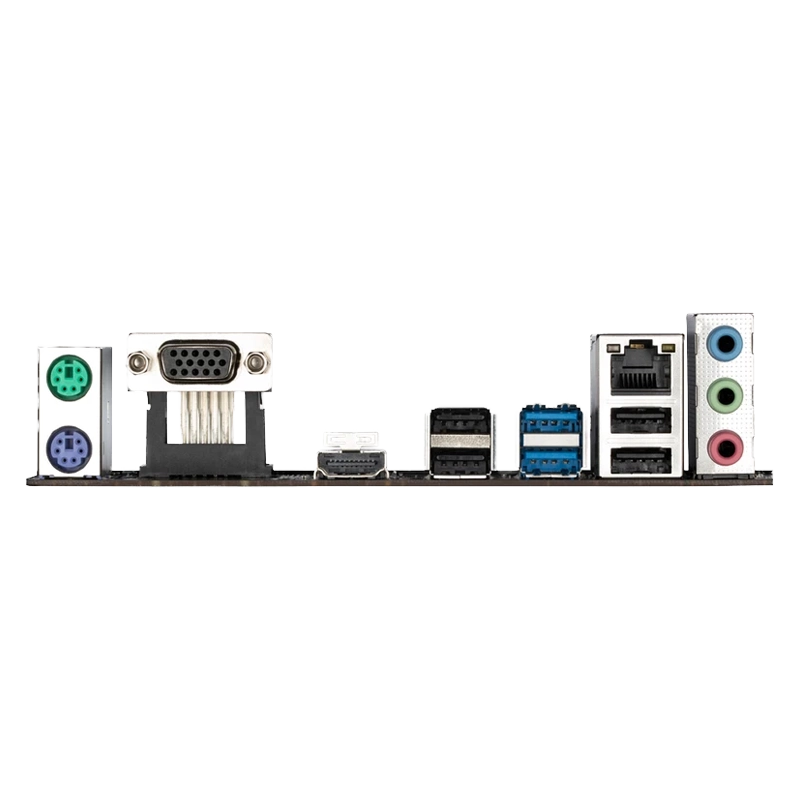

1xPS/2 keyboard port
1xPS/2 mouse port
1xD-Sub port
1xHDMI 2.0 port
2xUSB 3.2 Gen 1 ports
4xUSB 2.0/1.1 ports
1xRJ-45 port
3xaudio jacks

iTE® I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control

BIOS
1x256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for APP Center
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Norton® Internet Security (OEM version)
LAN bandwidth management software

Micro ATX Form Factor; 23.0cmx21.5cm
