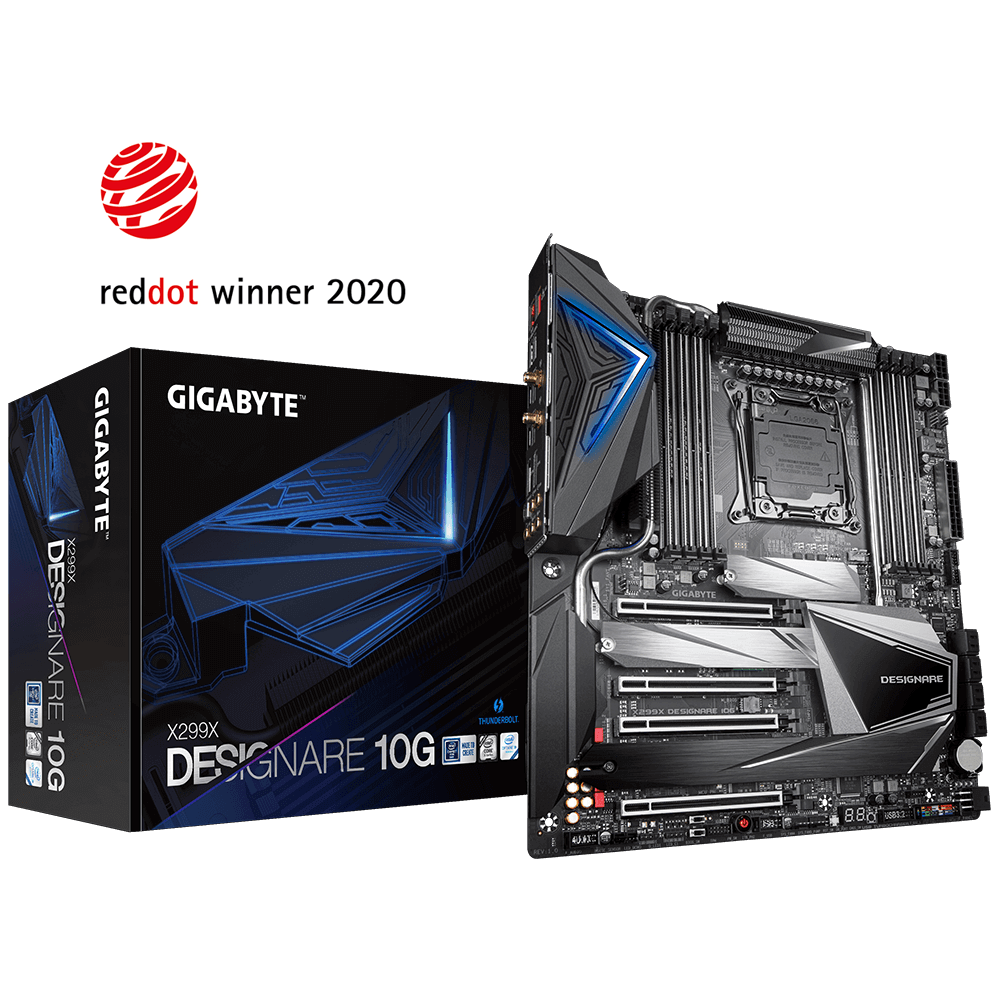

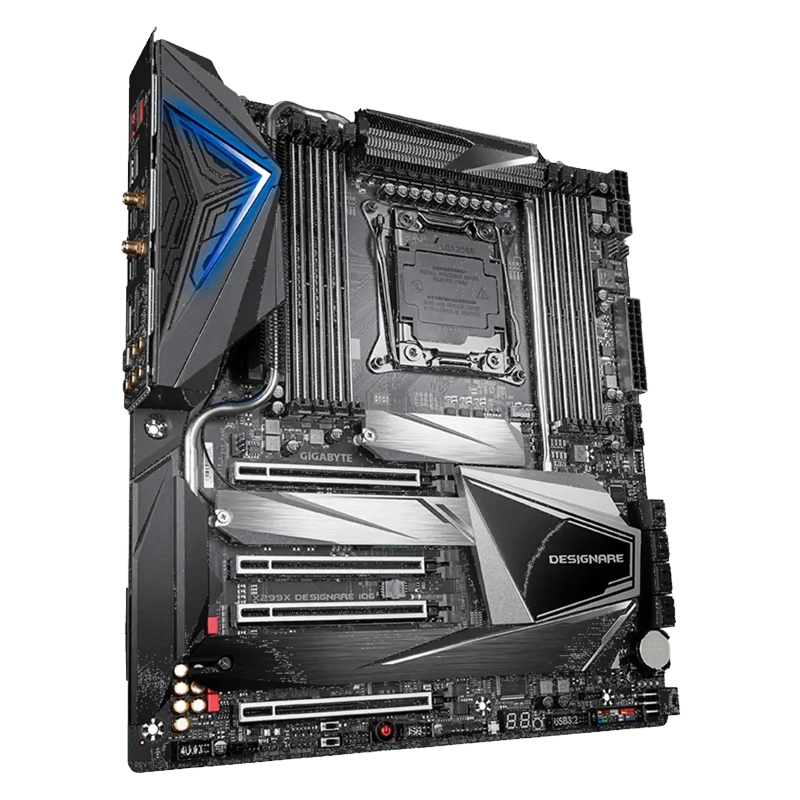

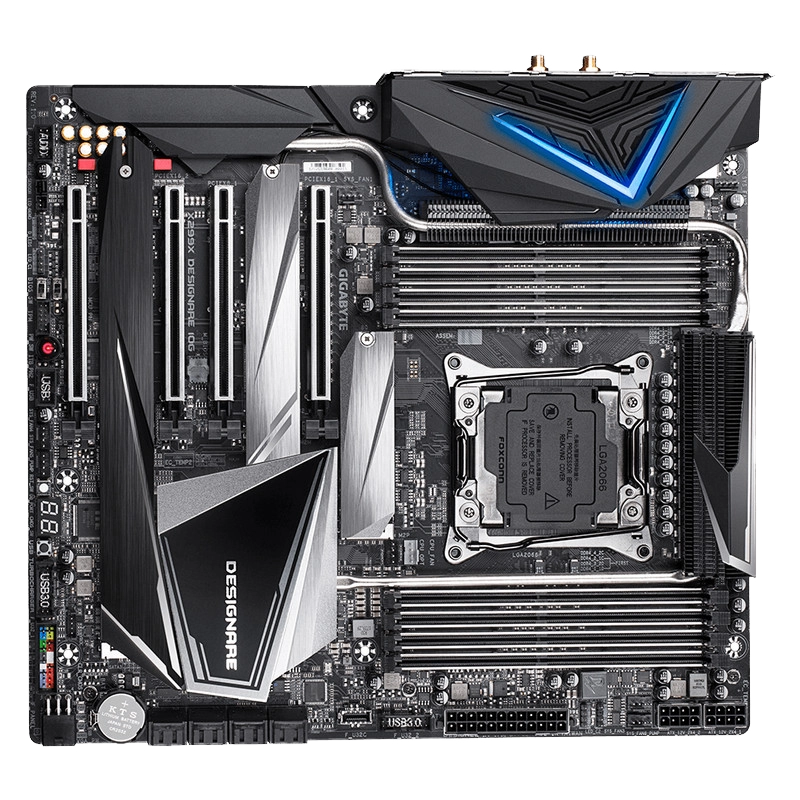

مادربرد گیگابایت مدل - GIGABYTE DDR4 X299X DESIGNARE 10G rev. 1.0

X299X DESIGNARE 10G (rev. 1.0)

Support for Intel® Core™ i7-7800X and above X series processors/ Intel® Core™ i9 X series processors in the LGA2066 package
L3 cache varies with CPU

Intel® X299 Express Chipset

Intel® Core™ X series 48-lane processors:
8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules
Intel® Core™ X series 44-lane/28-lane processors:
8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
Support for DDR4 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz memory modules
4 channel memory architecture
Support for non-ECC Un-buffered DIMM memory modules
Support for Extreme Memory Profile (XMP) memory modules

Intel® Thunderbolt™ 3 Controller:
2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
* Support for DisplayPort 1.4 version.
Maximum shared memory of 1 GB

Realtek® ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Intel® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports
Wireless Communication module
Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Intel® Core™xseries 48-lane processors:
2xPCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2xPCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
* The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot operates at up to x4 mode when an SSD is installed in the M2M connector.
Intel® Core™xseries 44-lane processors:
2xPCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1xPCI Express x16 slot, running at x8 (PCIEX8_2)
1xPCI Express x16 slot, running at x4 (PCIEX8_1)
* The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot becomes unavailable when an SSD is installed in the M2M connector.
Intel® Core™xseries 28-lane processors:
1xPCI Express x16 slot, running at x16 (PCIEX16_1)
1xPCI Express x16 slot, running at x8 (PCIEX16_2)
1xPCI Express x16 slot, running at x4 (PCIEX8_1)
* The PCIEX8_1 slot shares bandwidth with the M2M connector. The PCIEX8_1 slot becomes unavailable when an SSD is installed in the M2M connector.
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
S upport for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
S upport for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

CPU:
1xM.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
Chipset:
1xM.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
1xM.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q)
6xSATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)

Intel® Optane™ Memory Ready
* Only Intel® Core™xseries 48-lane processors support Intel® Optane™ Memory.

Intel® VROC Ready

ASMedia® SATA 6Gb/s controller:
2xSATA 6Gb/s connectors (SATA3 2, 3), supporting AHCI mode only

Chipset+Intel® Thunderbolt™ 3 Controller:
2xUSB Type-C™ ports on the back panel, with USB 3.2 Gen 2 support
Chipset+ASMedia® USB 3.2 Gen 2 controller:
1xUSB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
Chipset+Genesys USB 3.2 Gen 1 hub:
3xUSB 3.2 Gen 1 ports on the back panel
Chipset:
5xUSB 3.2 Gen 1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
2xUSB 2.0/1.1 ports available through the internal USB header

1x24-pin ATX main power connector
2x8-pin ATX 12V power connectors
1xVGA_PW power connector
1xCPU fan header
1xwater cooling CPU fan header
4xsystem fan headers
2xsystem fan/water cooling pump headers
2xaddressable LED strip headers
2xRGB LED strip headers
3xM.2 Socket 3 connectors
8xSATA 6Gb/s connectors
1xIntel® VROC Upgrade Key header
1xfront panel header
1xfront panel audio header
1xUSB Type-C™ header, with USB 3.2 Gen 2 support
2xUSB 3.2 Gen 1 headers
1xUSB 2.0/1.1 header
1xTrusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1xnoise detection header
1xClear CMOS jumper
1xpower button
1xreset button
1xClear CMOS button
2xtemperature sensor headers
2xBIOS switches

2xDisplayPort In ports
2xThunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
2xSMA antenna connectors (2T2R)
4xUSB 3.2 Gen 1 ports
2xRJ-45 ports
1xoptical S/PDIF Out connector
5xaudio jacks

iTE®I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS
2x128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
USB TurboCharger
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Norton® Internet Security (OEM version)
cFosSpeed
XSplit Gamecaster + Broadcaster (12 months license)

Support for Windows 10 64-bit

E-ATX Form Factor; 30.5cmx27.5cm
