مادربرد گیگابایت مدل - GIGABYTE DDR5 b760 m

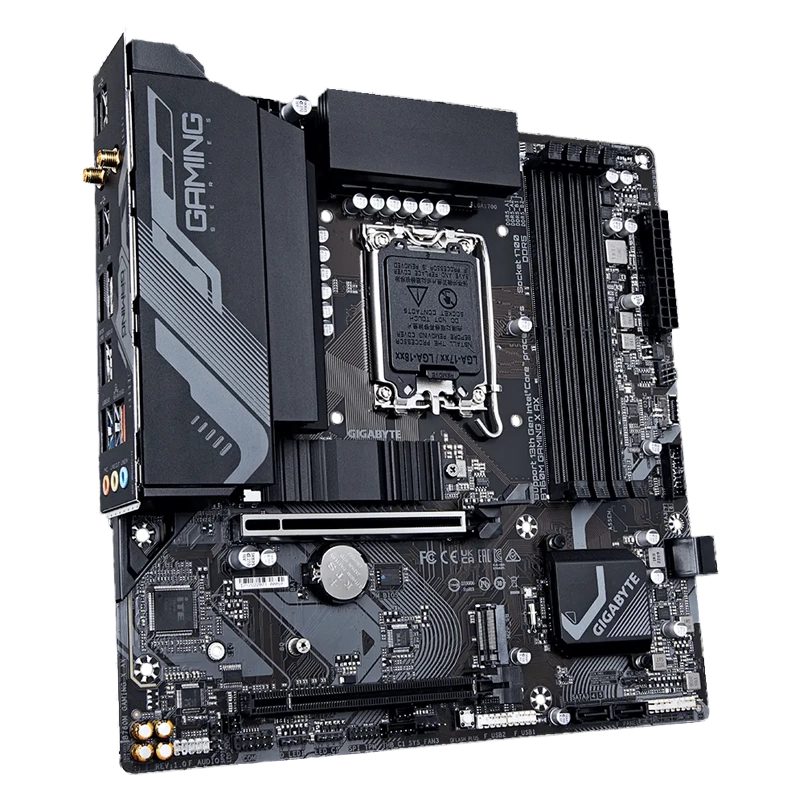

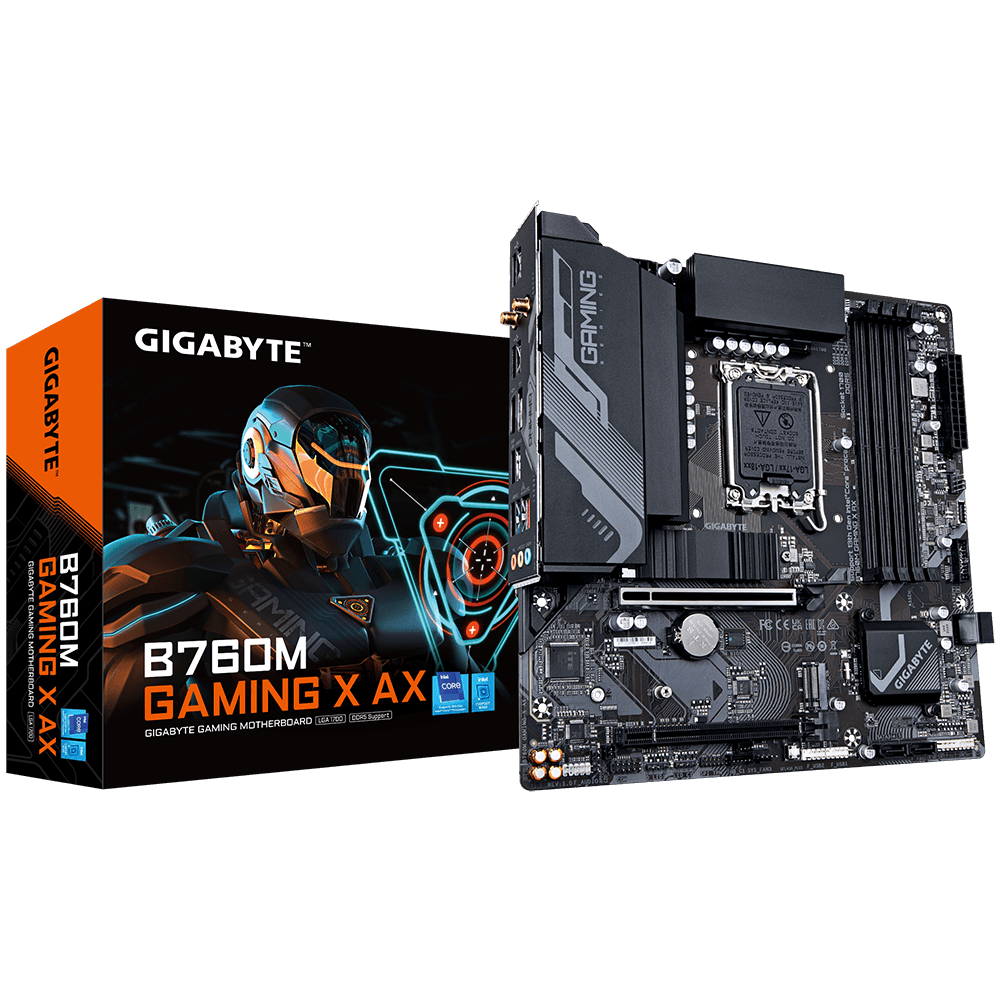

B760M GAMING X AX

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

Intel® B760 Express Chipset

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

1xDisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
1xHDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard

CPU:
1xPCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2xPCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

CPU:
1xM.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2xM.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4xSATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Chipset:
1xUSB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
1xUSB 3.2 Gen 2 Type-A port (red) on the back panel
1xUSB Type-C® port on the back panel, with USB 3.2 Gen 1 support
3xUSB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
1xUSB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8xUSB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

1x24-pin ATX main power connector
1x8-pin ATX 12V power connector
1xCPU fan header
1xCPU fan/water cooling pump header
3xsystem fan headers
1xsystem fan/water cooling pump header
2xaddressable LED strip headers
2xRGB LED strip headers
3xM.2 Socket 3 connectors
4xSATA 6Gb/s connectors
1xfront panel header
1xfront panel audio header
1xS/PDIF Out header
1xUSB Type-C® header, with USB 3.2 Gen 2 support
1xUSB 3.2 Gen 1 header
2xUSB 2.0/1.1 headers
1xTrusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1xserial port header
1xQ-Flash Plus button
1xreset jumper
1xClear CMOS jumper

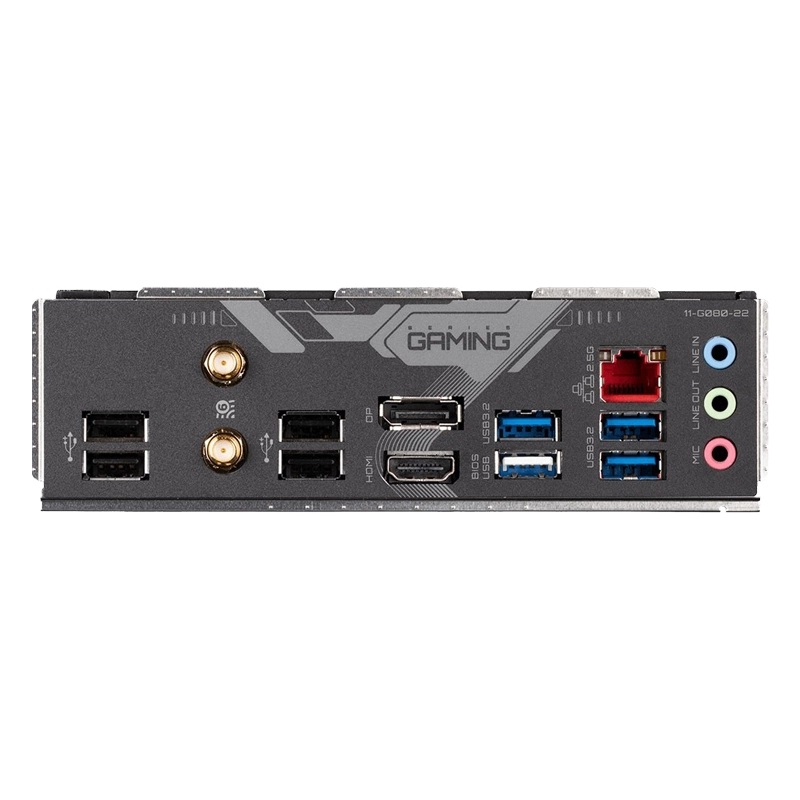

1xUSB 3.2 Gen 2 Type-A port (red)
1xUSB Type-C® port, with USB 3.2 Gen 1 support
1xUSB 3.2 Gen 1 port
5xUSB 2.0/1.1 ports
2xSMA antenna connectors (2T2R)
1xDisplayPort
1xHDMI port
1xRJ-45 port
6xaudio jacks

I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1x256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus

Norton® Internet Security (OEM version)
LAN bandwidth management software

Support for Windows 11 64-bit
Support for Windows 10 64-bit

ATX Form Factor; 30.5cmx24.4cm
