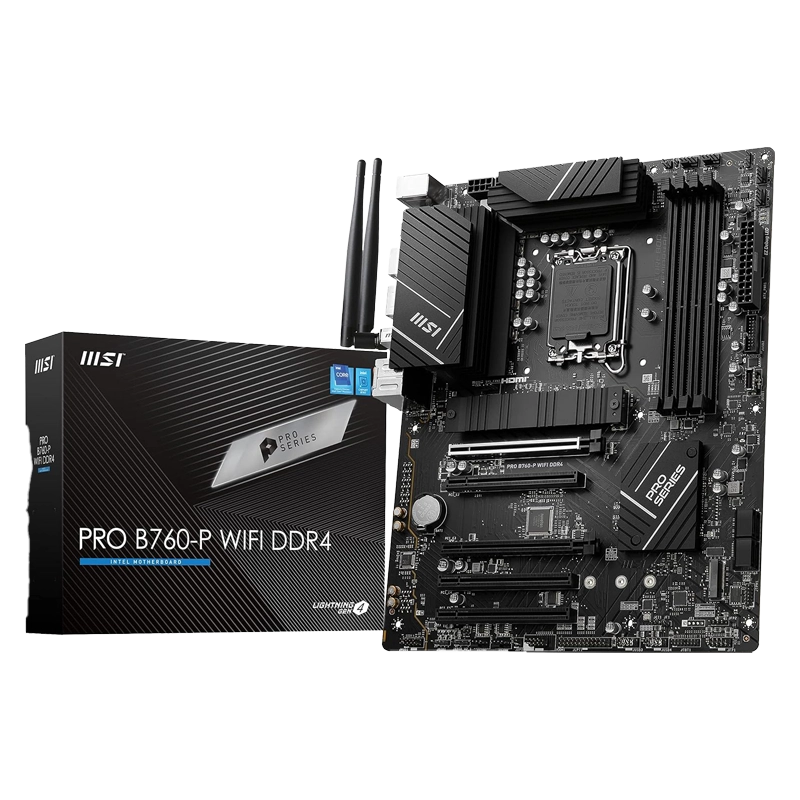

مادربرد ام اس آی مدل - MSI pro b760 p wifi DDR4

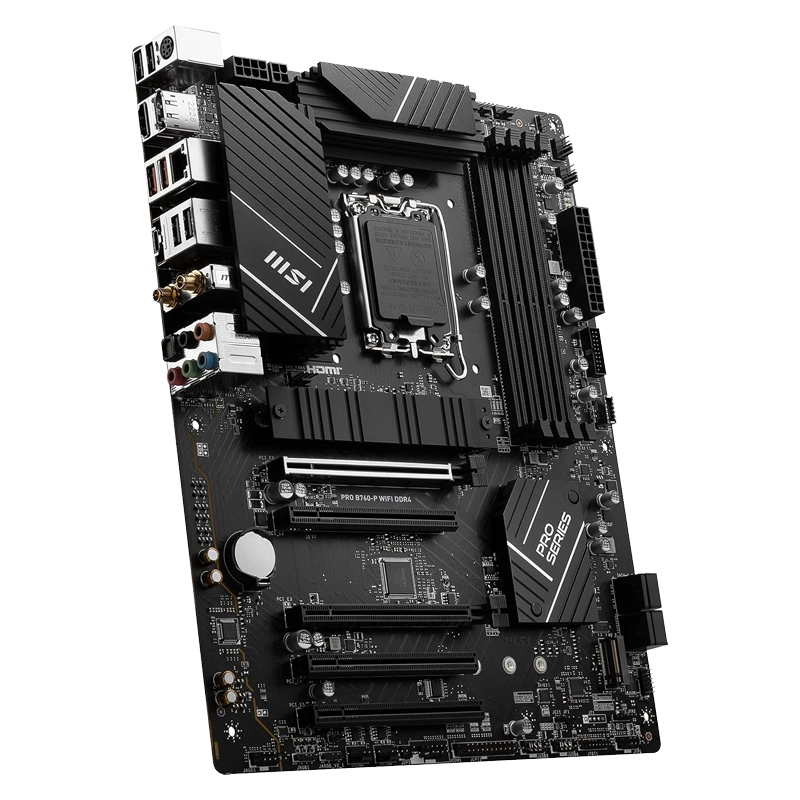

PRO B760-P WIFI DDR4

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz

5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

7 عدد

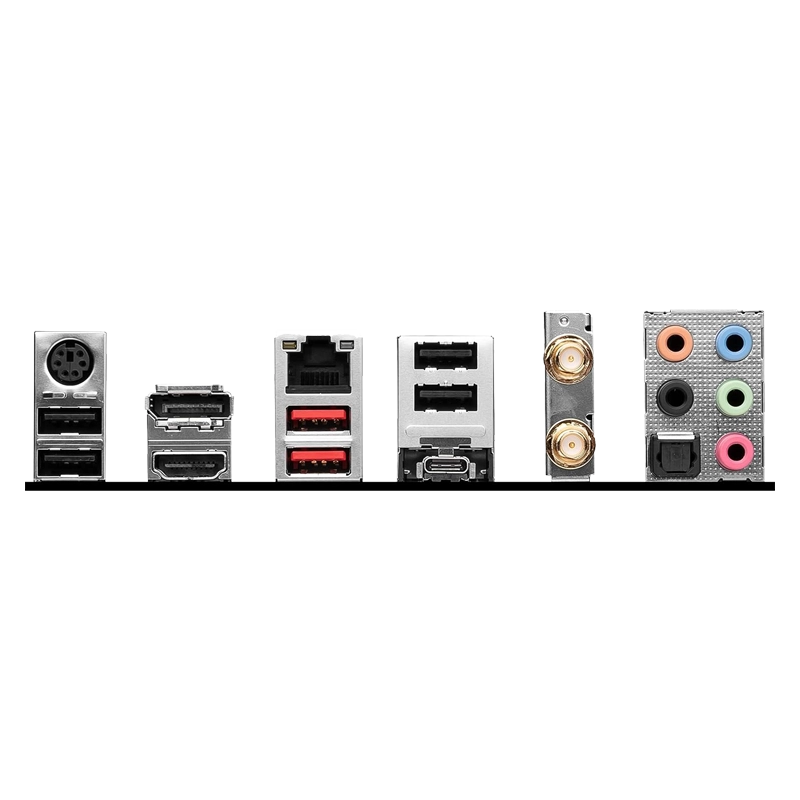

4xUSB 2.0 (Rear)
2xUSB 10Gbps Type A (Rear)
1xUSB 10Gbps Type C (Rear)

7 عدد

4xUSB 2.0 (Front)
2xUSB 5Gbps Type A (Front)
1xUSB 5Gbps Type C (Front)

Realtek® RTL8125BG 2.5G LAN

1xPower Connector(ATX_PWR)
2xPower Connector(CPU_PWR)
1xCPU Fan
1xPump Fan
5xSystem Fan
2xFront Panel (JFP)
1xChassis Intrusion (JCI)
1xFront Audio (JAUD)
1xPrinter Port (JLPT)
1xCom Port (JCOM)
2xAddressable V2 RGB LED connector (JARGB_V2)
1xRGB LED connector(JRGB)
1xTPM pin header(Support TPM 2.0)

4xUSB 2.0 ports
2xUSB 5Gbps Type A ports
1xUSB 5Gbps Type C ports

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
